Pulse Echo Concrete Tester

35-2303/09

Category:

Non-Destructive Testing of Hardened Concrete

Sub Category:

Pulse Velocity Measurement

Product Group:

Ultrasonic Detection

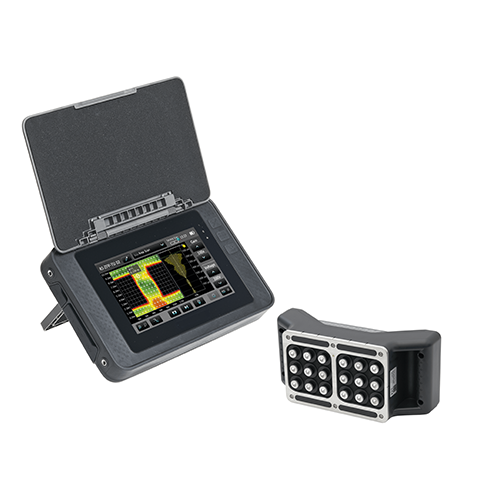

The Pulse Echo Concrete Tester extends the ultrasonic application to objects where access is restricted to a single side. Major applications are slab thickness measurements and the location of voids and delaminations. Rugged touchscreen with intuitive user interface.

B-Scan is constructed directly on the instrument as the scan is carried out.

Can be upgraded to Multi-Channel.

The same instrument can be used with classic pulse velocity transducers.

Applications include: pulse velocity determination, quality assessment and uniformity, thickness measurement from a single side, location of delaminations, voids and honeycombing, location of hollow pipes, location of pipes and tendon ducts beyond the rebar layer and assessment of fibre reinforced concrete.

Quantity required:

-
+

Further Information

Specification

Description Pulse Echo Concrete Tester
Measuring range Up to 1 m depending on concrete quality
Bandwidth  20 to 500 kHz
Technology  Single channel ultrasonic pulse-echo
Measuring resolution 0.1 us
Pulse voltage UPE ± 50 to ± 200 V
Receiver gain  1 to 10,000x (0 to 80 dB)
Nominal transducer frequency 24-500 kHz
Pulse shape  Square wave
Number of channels  1
