ELE Buoyancy Balance

42-1000/02

Category:

Aggregates

Sub Category:

Density, Voids and Bulking, Particle Density (specific gravity) and Water Absorption for Coarse Aggregates

Product Group:

ELE Buoyancy Balance

shown with density basket; not included; order separately.
110-120vAC, 50/60 Hz, 1ø.shown with density basket; not included; order separately.
110-120vAC, 50/60 Hz, 1ø.

Rated Power 110-120vAC, 50/60 Hz, 1ø.
ASTM C127 Yes
AASHTO T85 Yes
Description ELE Buoyancy Balance



Specifications

Capacity 8,100 g.
Construction Heavy-duty support frame with water tank
and mechanical lifting device. A suspension
hook is included.
Balance Electronic; 8,100 g capacity x 0.1 g.
Weight Net 79 lbs. (35.9 kg).



Density Basket

42-1003

high, stainless steel mesh.ASTM C-127; AASHTO T-85. 8”diam. x 8” high, stainless steel mesh.

Buoyancy Balance 6 kg X 0.1 g supplied with Support Frame Water Tank & Suspension Hook

42-1000/01

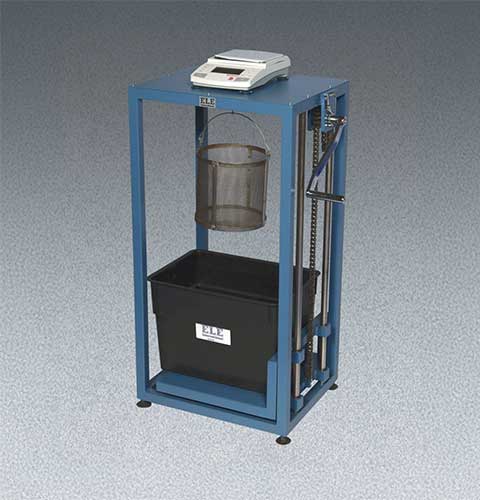

The buoyancy balance system developed by ELE consists of a rigid support frame, incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance. The balance supplied may also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory.6000 g x 0.1 g supplied with frame, water tank and suspension hook.
