Los Angeles Abrasion Machine with CE Safety Cabinet W/ Microswitches. 220-240V 60Hz 1Ph.

« return

Los Angeles Abrasion Machine with CE Safety Cabinet W/ Microswitches. 220-240V 60Hz 1Ph.

42-5310/06

Category:

Mechanical Properties

Sub Category:

N/A

Product Group:

Los Angeles Abrasion Machine

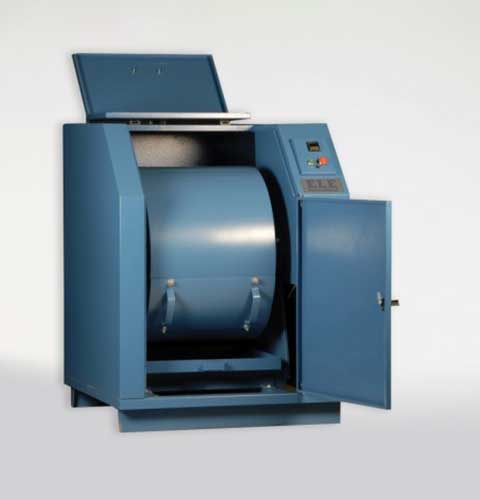

The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework. Also the full enclosure ensures noise is minimized.

The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening.

The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards.

Controls are located easily on the right-hand side of the machine at convenient operator height.

Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.

**Not available for sale in the USA**

Description Los Angeles Abrasion Machine with CE Safety Cabinet W/ Microswitches. 220-240V 60Hz 1Ph.
Description Los Angeles Abrasion Machine with CE Safety Cabinet 220 - 240 V 60Hz
Power Supply 220 - 240 V AC, 60 Hz, 1 ph
EN 1097-2 Yes
ASTM C131 Yes
ASTM C535 Yes
NF P18-573 Yes

Los Angeles Abrasion Machine Meets ASTM and European Standards. 220-240V 50Hz 1Ph.

42-5315/01

The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework.The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening. The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards. Controls are located easily on the right-hand side of the machine at convenient operator height. Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.

Los Angeles Abrasion Machine Meets ASTM and European Standards. 220-240V 60Hz 1Ph.

42-5315/06

The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework.The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening. The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards. Controls are located easily on the right-hand side of the machine at convenient operator height. Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
