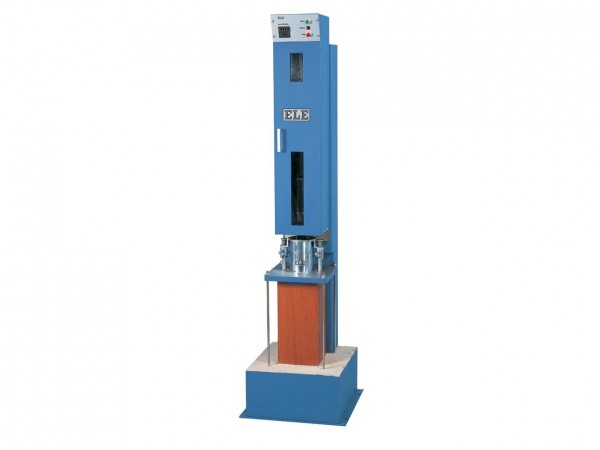

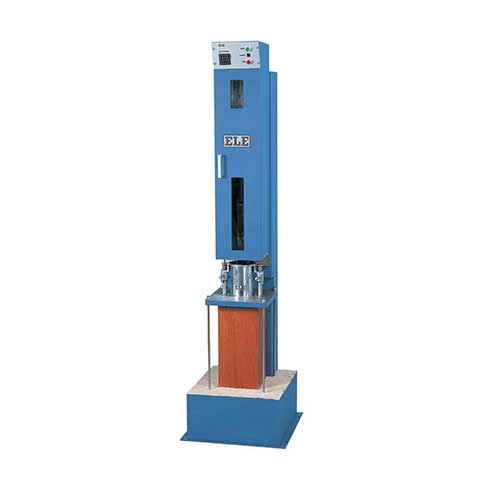

Autocomp 100-A Marshall Compactor BS

45-6600/01

Category:

Design and Testing of Bituminous Mixtures

Sub Category:

Compaction

Product Group:

Automatic Compaction

Fully automatic, simple to operate
Built-in safety features
Uniform compaction
Automatic blow counter

Complies to BS 598-107

This ruggedly constructed automatic compactor provides a consistent and even degree of compaction. The unit incorporates a compaction pedestal comprising a laminated hardwood block secured to a concrete base by a 300 mm square x 25 mm thick steel plate. The mechanism lifts the 4535 g hammer and automatically releases it at the specified height of 457 mm. The conveniently positioned control fascia panel comprises of a mains light, start and stop buttons and a direct-reading counter used to set the required number of blows.

During operation the AutoComp 100-A automatically counts down to zero. Dual rammer pick-ups have been incorporated, reducing stress on the machine’s internal mechanism.
Particular attention has been paid to operator safety by the inclusion of various in-built safety features.

**Not available for sale in the USA**

Description AutoComp 100-A
Power Supply 220 - 240 V AC, 50 Hz, 1 ph
EN 12697-10 Yes
EN 12697-30 Yes
BS 598 Yes



Specification

Dimensions (l x w x h) 535 x 535 x 1880 mm
Compaction foot diameter 98.52 mm
Sliding weight 4535 g
Height of drop 457 mm
Weight 278 kg



Compaction Mould

45-6310

illing/extraction collar.

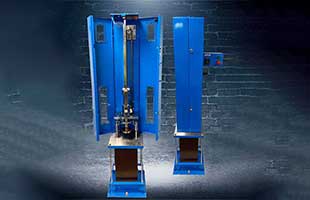

Autocomp 100-A Marshall Compactor ASTM with Flexible Head (Guarded)
