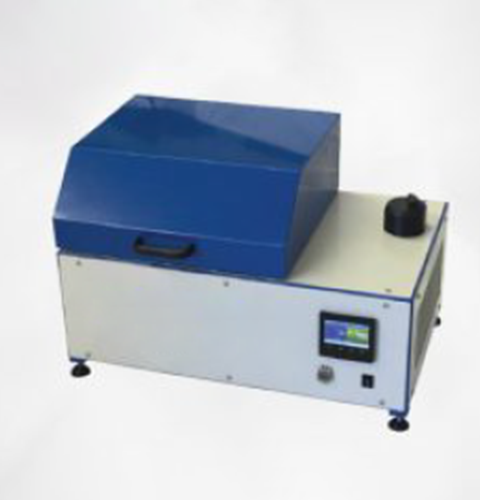

Pressure Ageing Vessel

46-5010/01

Category:

Bitumen and Tar

Sub Category:

N/A

Product Group:

Pressure Ageing Vessel

Pressure Aging Vessel (PAV) is designed to simulate in-service oxidative aging of asphalt binder by exposure to elevated temperatures in a pressurized environment

The system meets ASTM, AASHTO and EN 14769 requirements.

It includes a pressure relief valve and high-temperature thermal shut-down.

It allows remote operation capabilities, and allows the user to completely control the PAV.

Operating pressure range of 2.1± 0.1 mPa, and a temperature range of 80°C to 115°C, with resolution of 0.1°C.

Description Pressure Ageing Vessel
Estimated Weight Kg  195
Dimensions mm (W x D x H) 710 x 460 x 760
