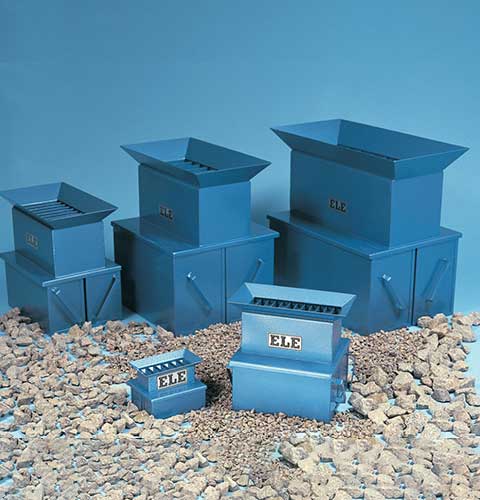

Riffle Box 30mm Slot Width Complete with Three Containers.

« return

Riffle Box 30mm Slot Width Complete with Three Containers.

23-3170

Category:

In-situ Sampling and Preparation

Sub Category:

Hand Boring and Sampling

Product Group:

Riffle Boxes (Sample Dividers)

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 20 mm. EN recommended maximum particle size of 15 mm. Includes 10 slots each with a 30 mm slot width and an overall approximate capacity of 4 litres.

Log in

You must log in to your ELE account to view prices and place your order.

Recommended max particle size - mm (BS) 20.0
Recommended max particle size - mm (EN) 15.0
Slot width, mm 30
No. of slots 10
Capacity, litres 11 kg
BS 1377 Yes
BS 1924 Yes
BS 812 Yes
EN 932-1 Yes



Specification

Recommended max particle size BS 20
Recommended max particle size EN 15
Slot width mm 30
No. of slots 10
Approx. capactiy kg 4
Weight kg 17.5



Riffle Box 13mm Slot Width Complete with Three Containers.

23-3050

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 8.5 mm. EN recommended maximum particle size of 6.5 mm. Includes 12 slots each with a 13 mm slot width and an overall approximate capacity of 2 litres.

Riffle Box 15mm Slot Width Complete with Three Containers.

23-3070

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 10 mm. EN recommended maximum particle size of 7.5 mm. Includes 12 slots each with a 15 mm slot width and an overall approximate capacity of 2 litres.

Riffle Box 19mm Slot Width Complete with Three Containers.

23-3100

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 12.5 mm. EN recommended maximum particle size of 9.5 mm. Includes 10 slots each with a 19 mm slot width and an overall approximate capacity of 4 litres.

Riffle Box 25mm Slot Width Complete with Three Containers.

23-3150

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 16.5 mm. EN recommended maximum particle size of 12.5 mm. Includes 10 slots each with a 25 mm slot width and an overall approximate capacity of 4 litres.

Riffle Box 38mm Slot Width Complete with Three Containers.

23-3200

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 25 mm. EN recommended maximum particle size of 19 mm. Includes 8 slots each with a 38 mm slot width and an overall approximate capacity of 11 litres.

Riffle Box 50mm Slot Width Complete with Three Containers.

23-3300

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 33 mm. EN recommended maximum particle size of 25 mm. Includes 8 slots each with a 50 mm slot width and an overall approximate capacity of 14 litres.

Riffle Box 64mm Slot Width Complete with Three Containers.

23-3350

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 42.5 mm. EN recommended maximum particle size of 32 mm. Includes 8 slots each with a 64 mm slot width and an overall approximate capacity of 18 litres.

Riffle Box 7mm Slot Width Complete with Three Containers.

23-3000

Manufactured from heavy-gauge sheet metal. BS recommended maximum particle size of 4.5 mm. EN recommended maximum particle size of 3.5 mm. Includes 12 slots each with a 7 mm slot width and an overall approximate capacity of 0.3 litres.
