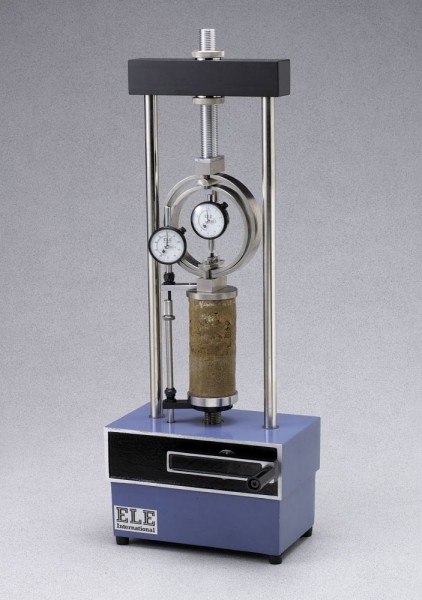

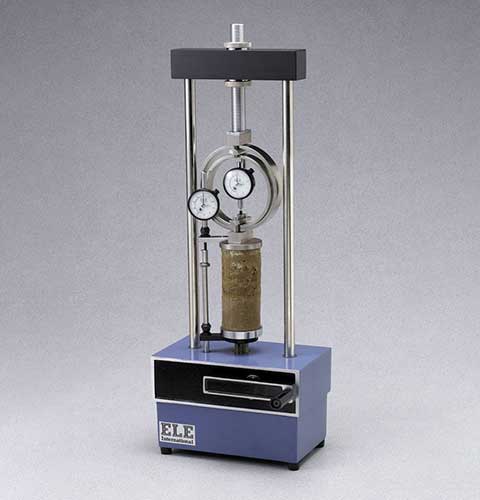

Unconfined Compression Tester, Hand-Operated

25-3602

Category:

Soils

Sub Category:

Unconfined Compression

Product Group:

Unconfined Compression Tester, Hand-Operated

500 lb. load capacity.

Description Unconfined Compression Tester, Hand-Operated 500 lb
Cross Head High-strength aluminum.
ASTM D2166 Yes
AASHTO T208 Yes



Specifications

Specimen Height Up to 8” (203 mm).
Platens 3” (76 mm) diam.; with concentric grooves for
centering specimen.
Proving Ring Plated steel; complete with dial indicator and calibration charts in English and Metric units.
Strain Indicator English: 1.0” range x 0.001” graduations.
Metric: 25 mm range x 0.01 mm graduations.
Hand Crank Two-piece; aluminum.
Base One-piece; cast aluminum.
Crosshead High-strength aluminum.
Dimensions 10-5/8” w. x 6-3/8” d. x 26-1/4” h. (270 x
162 x 667 mm).
Weight Net 43 lbs. (19.5 kg).; Shpg. 58 lbs. (26.3 kg).

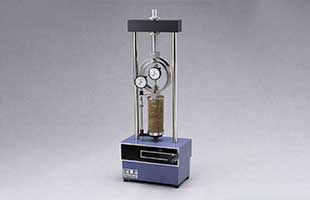

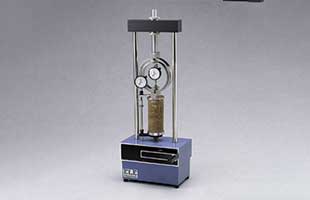

Unconfined Compression Tester, Hand-Operated

25-3604

1,500 lb. load capacity.
