• New Touch Screen user interface to reduce set-up and training time.
• High accuracy and test repeatability.
• Selectable display in English, Metric and S.I. units.
• Pace Deviation Bar Graph.
• Automatic stress calculation and display.
• Safety guards provided as standard.
• Safety overtravel and overload protection.
• Adaptable, using a wide range of accessories.
• Rapid-change platen mounting system.
• Meets ASTM and AASHTO specifications.

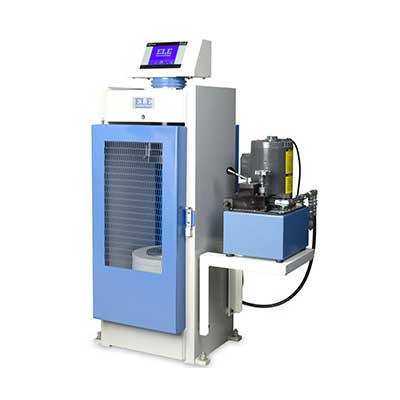

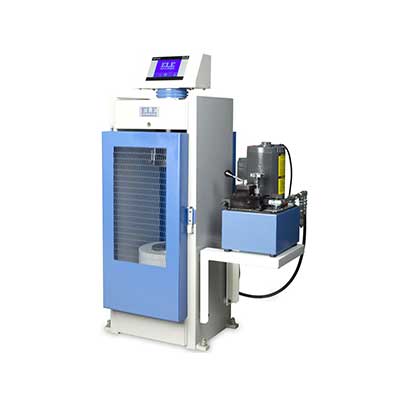

The ACCU-TEK TOUCH™ 500 Series compression tester meets the demands of extensive load capacity testing by combining microprocessor technology with rugged solid steel frame construction for testing high strength concrete. The space-saving single unit design consists of a heavy duty 500,000 lbf. (2,224 kN) capacity load frame, hydraulic pump and digital display system.

The large lower bearing block, combined with a bellows, eliminates hydraulic leaks by preventing dust and debris from entering the piston/cylinder seal area of the load frame. The 14” (355 mm) wide horizontal opening provides complete accessibility for loading specimens.

With the rapid-change platen system, the operator can quickly and easily mount a wide range of accessories to the upper crosshead for cylinder, cube, beam, and block specimen testing – from 2” (50 mm) cubes to 12” (305 mm) masonry blocks.

Accu-Tek Touch 500 Series 220V/50Hz

info »
36-3095/01

Accu-Tek Touch 500 Series 110V/60Hz

info »
36-3095/02

Accu-Tek Touch 500 Series 220V/60Hz

info »
36-3095/06

Platen Set for 6" x 12" Concrete Cylinders

info »
37-5500

Platen Set 3" x 6" Concrete Cylinders

info »
37-5504

Platen Set for 2" Cubes

info »
37-5510

Platen Set for Blocks up to 12"

info »
37-5518

Pedestal for Testing 4" x 8" Cylinders

info »
37-5561

Ram Seal

For Accu-Tek 500 info »
4699-1316

Accutek Oil

1 Gal. info »
9806-0016

Frame Stand

Frame Stand for Accu-Tek 350 and 500 series compression machines.

info »
37-5575

Flexural Attachment

info »
37-5526
