The ovens listed here are specifically designed for the testing of bitumen

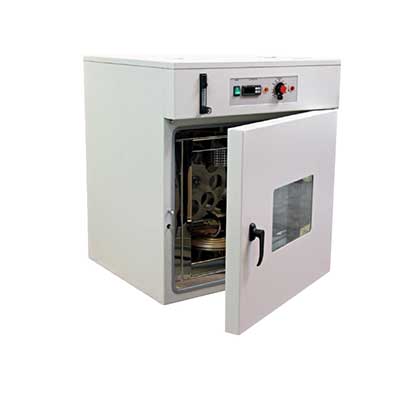

Rolling Thin-Film Oven 220-240V 50/60 Hz

The Rolling Thin-Film Oven (RTFO) procedure provides simulated short term aged asphalt binder for physical property testing. Asphalt binder is exposed to elevated temperatures to simulate manufacturing and placement ageing. The RTFO also provides a quantitative measure of the volatiles lost during the ageing process.

The exterior is constructed from sheet steel finished in an easy clean powder coated paint and the interior chamber is made from stainless steel.

The control system comprises of a microprocessor digital controller and overheat thermostat with calibrated scale and tamper-proof lock.

info »
46-4150/01

Glass Sample Container for 46-4150 pack of 8

Glass Sample Container

Length: 0.08m

Width: 0.08m

Height: 0.08m

Volume: 0.0005cc

Weight 0.5kg

info »
46-4150/11

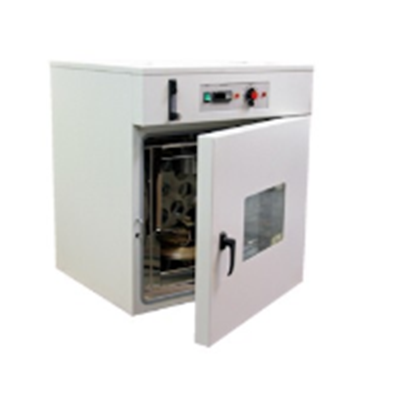

Loss on Heat/Thin-Film Oven 220-240V 50/60 Hz

The Thin-Film Oven is used for determining the loss in mass of oil and asphaltic/bituminous compounds when heated with the loss on heating test method or the effect of heat and air on semi-solid asphaltic/bituminous materials with the Thin-Film Oven (TFO) test method.

Features:

  • The exterior is constructed from sheet steel finished in an easy clean powder-coated paint.
  • Interior chamber is made from Stainless Steel.
  • The unit is well insulated and has a double glass door for viewing the test chamber.
  • The system is controlled by a microprocessor digital controller and overheat thermostat.
  • Calibrated scale and tamper-proof lock.
  • Temperature is controlled and pre-set at 163°C +/- 1°C
  • Two rotating platforms of 13.5 inches diameter are supplied to perform both the tests. Side mounted controls comprise:
  • Microprocessor digital control.
  • Independent overheat thermostat.
  • Mains switch.
  • On/off switch for the turntable motor.
  • Indicator lamps.
info »
46-4100/01

Rolling Thin Film Oven Including Timer

The product accurately simulates the short term aging of asphalt binder which occurs during mixing.

The exterior is constructed from sheet steel finished in an easy clean powder coated paint and the interior chamber is made from stainless steel.

The control system comprises a microprocessor digital controller with timer and overheats thermostat with calibrated scale and tamper proof lock.

Double wall construction with high-density thermal insulation, non-rusting grade 304 Stainless steel interior, easy clean powder painted steel exterior in light grey (RAL 7035) textured finish.

Top mounted fan constructed with an air plenum as described in the ASTM D2872 specification and is fitted with a squirrel-type fan blade for better uniformity of air and temperature distribution

Equipped with air jet for blowing heating air into each bottle at its lowest point of travel, base mounted elements, vented to atmosphere, single front opening, side hinged door with positive quarter turn latching mechanism, double glazed window in door for viewing the test chamber

Top mounted controls comprise, dual display microprocessor digital control, independent overheat thermostat, flow meter to control airflow, indicator lamps

Power supply: 220-240 V 50 Hz.1500 watts

Supplied with a built-in 305mm diameter vertical circulator carriage to hold 8 glass sample containers rotating at 15 rpm ±0.2rpm (glass containers not supplied)

Temperature is controlled and pre-set at 163°C ± 1°C  Dimensions: Length  0.66m Width  0.71m Height  0.8m Volume  0.3749 cc Weight  90 kg

info »
46-4155/01

Spare turntable for Loss on Heat/Thin Film Oven 220-240V 50 Hz (Loss on Heat Test)

info »
46-4100/10

Spare turntable for Loss on Heat/Thin Film Oven 220-240V 50 Hz (Thin Film Test)

info »
46-4100/11
