Our list of current In-situ CBR products are listed below. If you cannot find what you are looking for, please contact us and we will try our best to help you.

Datum Bar Assembly.

Comprising 2 tripod stands and a datum bar.

info »
24-9312

Bracket and Adaptor. Dual Purpose Mounting Bracket for CBR Penetration Gauges EL24-9184/EL24-9186

Dual purpose mounting bracket for CBR penetration dial gauges. Allows gauge to be fixed to penetration piston or load ring.

info »
24-9188

Cbr Penetration Piston (Adjustable).

As 24-9182 but with a coarse stem adjustment. This piston is particularly useful for in-situ testing.

info »
24-9183

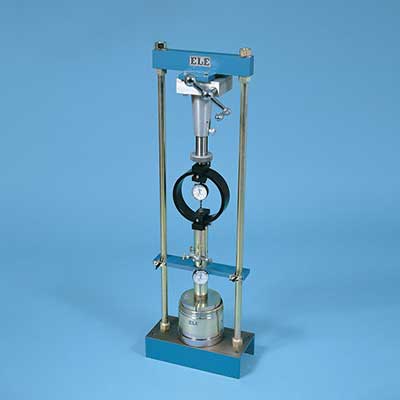

45kN (10000Lb) Capacity Mechanical Jack.

The body is corrosion protected and houses an enclosed worm and wheel gear. The gear ratio has been carefully selected to provide a handwheel speed that can be comfortably maintained, particularly with soils of high CBR value. A quick-release device in the screwjack allows the plunger to be rapidly adjusted prior to the test.

info »
24-9290

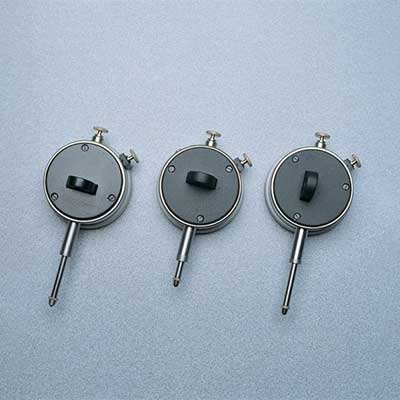

Penetration/Swell Dial Gauge ASTM.

1 in travel x 0.0005 in divisions. Complete with rack extensions and chisel edge anvil.

info »
24-9184

Penetration Dial Gauge BS

Complete with rack extensions and chisel edge anvil.25 mm travel x 0.01 mm divisions.

info »
24-9186

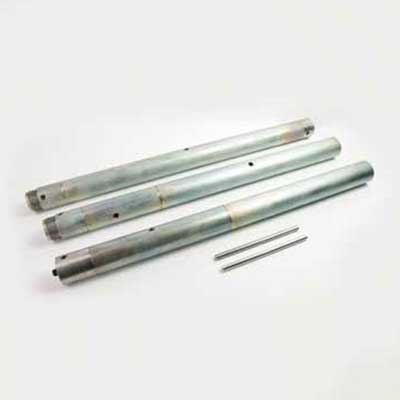

Set of Extension Rods Complete

Made from high quality steel with large section thread for quick assembly.

info »
24-9308

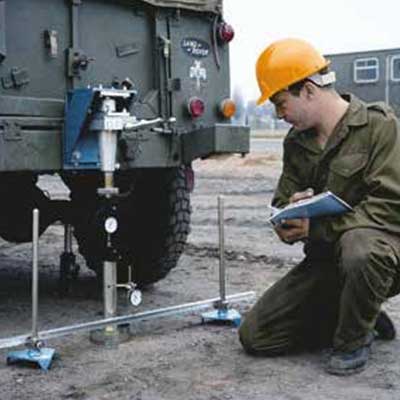

Land Rover Bracket to Attach EL29-200 Jack. for Land Rovers Models 90 & 110 From 1983 Onwards.

Fits all models in Land Rover series 90 and 110.

info »
24-9298

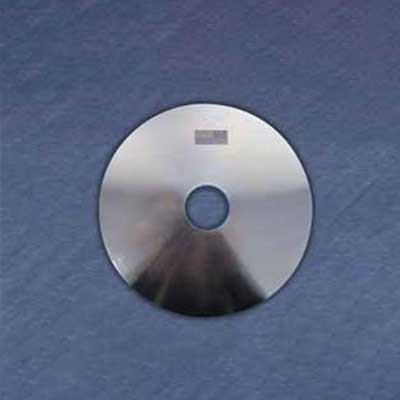

10Lb (4.5Kg) Annular Surcharge Weight.

info »
24-9320

9.1Kg (20 Lb) Slotted Surcharge Weight (Cbr).

info »
24-9248

Dial Gauge 50 mm Travel x 0.01 mm divisions complete with adjustable clamp assembly

Dial guage 50 mm travel x 0.01 mm divisions complete with adjustable clamp assembly. Dial guage has an anti-clockwise reading.

Standards: BS 1377-9, 1924-2, EN DD ENV1997-3, ASTM D1194, D1195, D1196.

info »
29-3822

Ball Seating for EL 24-9290 45 kN Jack

For fitting between the mechanical jack and reaction point. The ball seating is used when testing on undulating ground to ensure that the jack, load measuring ring and penetration piston are truly vertical. Non-axial loading of the load ring will give false results and will eventually damage the ring itself. info »
24-9300

10Lb (4.5Kg) Slotted Surcharge Weight.

info »
24-9322
