23-1378
Category:
Soils
Sub Category:
In situ Sampling and Preparation, Sampling and Hand Boring
Product Group:

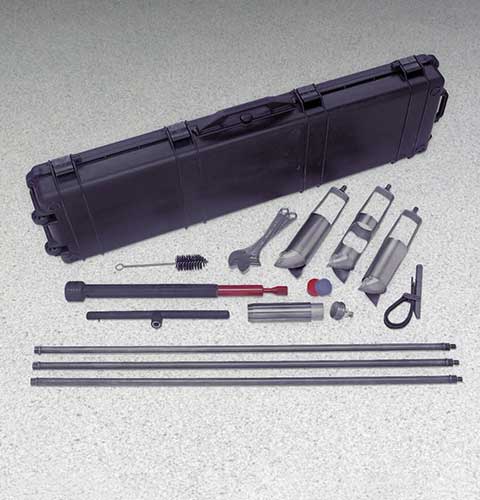

Basic Auger Kit
• Basic soil sampling tools in one field ready kit.
• Includes access augers, extensions, and core sampler.
• Accessories included in convenient carrying case.
The Basic Auger Kit has virtually everything you need in one place for obtaining soil samples. It includes all the tools necessary to get down to your required sampling depth with ease under a variety of soil conditions.
Three augers (one each regular, sand and mud), extensions, a core sampler, slide hammer, cross handle and accessories are conveniently packaged in a deluxe carrying case.
In accordance with ASTM D420, the Basic Auger Kit can be used for the purpose of exploration of superficial soils.
With 3-1/4” (82.5 mm) augers and 2” x 6” (50.8 x 152.4 mm) core sampler.
| Components | Cross handle, cleaning brush, wrenches. |
| Description | Basic Auger Kit |
| Augers | Tungsten carbide coated high carbon bits. |
| Core Sampler | Standard type with slide hammer. |
| Extensions | Threaded (5/8” thread); 4 ft. (1.2 m) l; three included. |
| Components | Cross handle, cleaning brush, wrenches. |
| Weight | 60 lbs. (27 kg). |
23-1386
• Extra long, open bail for emptying.• 5/8” (15.8 mm) threaded extension couplings.• Cutting edges are heat treated before sharpening.• Includes 36” (914 mm) extension and chrome cross handle.The Dutch Auger is hand-forged from high-carbon spring steel and honed to a fine cutting edge. Its design makes it an excellent tool in heavily rooted, fibrous or swampy areas.
23-1382
• Extra long, open bail for emptying.• 5/8” (15.8 mm) threaded extension couplings.• Cutting edges are tungsten carbide hard-surfaced;heat treated before sharpening.• Includes 36” (914 mm) extension and chrome cross handle.The Mud Auger features an open cylinder design facilitating easy removal of heavy, wet soil or clay samples. Bits are similar to the Regular Auger bits but are spaced farther apart.
23-1410
The Oakfield Soil Sampling Kit was developed for rapid sampling in all types of soils. The kit contains a sampling tube for soft loamy soils and an auger for sampling dense, hard or frozen soils. Although developed for sampling of soils for agricultural purposes, the kit is a valuable tool in preliminary soils investigations of all types.
23-1380
• Extra long, open bail for emptying.• 5/8” (15.8 mm) threaded extension couplings.• Cutting edges are tungsten carbide hard-surfaced;heat treated before sharpening.• Includes 36” (914 mm) extension and chrome cross handle.The Regular Auger is used for ordinary soil sampling and for accessing the sampling point when undisturbed samples will be taken with a core sampler. Specially designed bits guarantee easy penetration.
23-1384
• Extra long, open bail for emptying.• 15.8 mm) threaded extension couplings.• Cutting edges are tungsten carbide hard-surfaced; heat treated before sharpening.• Includes 36” (914 mm) extension and chrome cross handle.The Sand Auger was designed for use in extremely dry, sandy soils. Its bits are specially formed to retain sand samples.
