Our list of current AUTO Soils Consolidator products are listed below. If you cannot find what you are looking for, please contact us and we will try our best to help you.

AUTO Soils Consolidator

Designed and engineered for geotechnical laboratories to deliver new levels of efficiency in testing procedures.

The one-dimensional consolidation test is the most common, and sometimes referred to as the oedometer or incremental loading oedometer test. Radially constrained samples are loaded in a sequence starting with a stress close to the over burden pressure of the sample. The loading is then doubled for each stage; typically 4 or 5 times, with a final unloading sequence.

Now supplied complete with DS8.0 One-Dimensional Consolidation Software

Features:

- Available in one universal model 90-240 V AC, 50-60 Hz, 1 ph

- 7” waterproof, colour, graphical touchscreen

- Multi language

- No compressor – stepper motor improves accuracy across entire 15 kN load range

- Variable speed to suit sample type

- Can change target loads during a test

- Flexible reports

- Compatible with latest DS8 software

Customer benefits:

- Fully automatic – reduces testing time

- Compact footprint – saves laboratory space

- Save configurations for easy set-up of multiple cells and repeat tests

- Control up to 16 AUTO Soils Consolidator machines from one PC – improves laboratory efficiency

- Ability to include manual consolidation frames – avoids redundancy

- Wide range of sample cells

Please note: S type load cell and a linear variable displacement transducer (LVDT) must be ordered seperately

info »
25-0500/09

15 kN S Type Load Cell (lead 0.7 m)

Used for AUTO Soils Consolidator (25-0500/09)

info »
27-1565

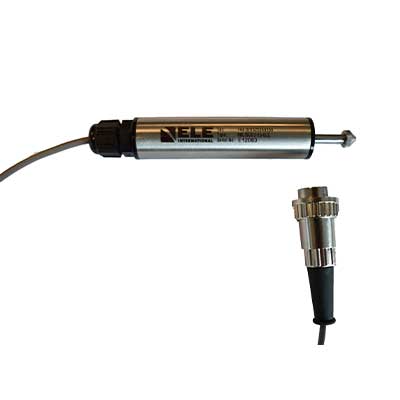

15 mm Displacement Transducer (lead 0.7 m)

Used for AUTO Soils Consolidator (25-0500/09)

info »
27-1650
