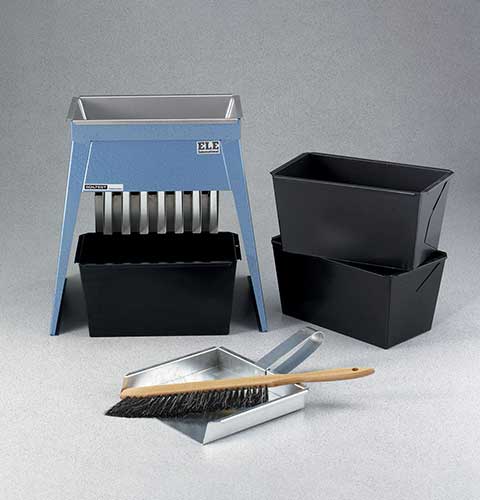

Sample Splitter (Riffle Box) - 14 chutes, 1/2” (13 mm) chute width

« return

Sample Splitter (Riffle Box) - 14 chutes, 1/2” (13 mm) chute width

23-3052

Category:

Laboratory Equipment

Sub Category:

Gradation, Sample Splitters

Product Group:

Sample Splitters (Riffles)

Chute Bars Steel
ASTM C136 Yes
ASTM C702 Yes
ASTM D271 Yes
ASTM D492 Yes
AASHTO T27 Yes
AASHTO T87 Yes
AASHTO T248 Yes
Description Sample Splitter (Riffle Box) - 14 chutes, 1/2” (13 mm) chute width



Specifications

Chutes Stainless steel.
Hopper Stainless steel.
Frame Painted steel.
Hopper Dimensions 6” x 9-3/4” (152 x 24 8 mm).
Weight Net 9 lbs. (4.1 kg).



Large Capacity Sample Splitter.

23-3425

The splitter is designed for the reduction of test samples which are too large in volume to be conveniently handled. It divides samples so that half is respresentative of the original total sample and handles material up to 6 inches in particle size. The lever-actuated unit is constructed of heavy gauge welded steel with a hopper which holds up to 1 cuft. The single splitter chute provides wide flexibility in sizes of opening and adjustment is provided for chutes of 0.5, 1.5, 2, 3, 4 or 6 inch by positioning of the chute bars. Overall height is approximately 1 meter. Hopper size 735 mm long x 480 mm wide (approx). Standards: EN 933-3 ASTM C136 NF P18-553 UNI 8520 AASHTO T27 AASHTO T87 BS 812:1 BS 1377:2 BS 1924:1 UNE 83120
