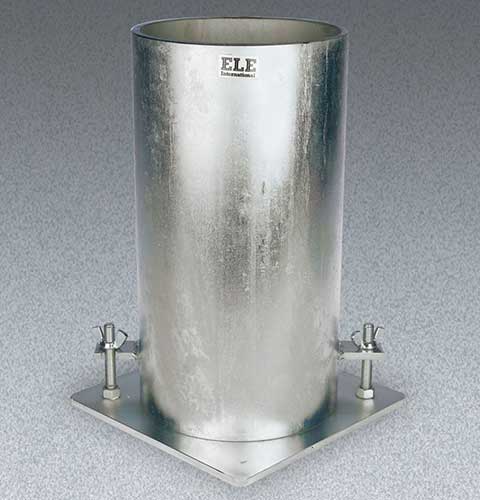

Heavy-Duty Cylinder Mould 6" x 12"

34-5280

Category:

Concrete

Sub Category:

Fresh and Hardened Concrete Testing, Moulding Equipment

Product Group:

Heavy-Duty Cylinder Moulds

(152 x 305 mm) samples.

Optimum Pouring Range, °F 260 - 290
ASTM C39 Yes
ASTM C192 Yes
AASHTO T23 Yes
ASTM T126 Yes
Description Heavy-Duty Cylinder Mould 6″ x 12″



Specifications

Base Attachment 2 forged steel stud-and-clip assemblies welded to mold.
Mold Closure 2 forged steel clamps welded to mold along longitudinal split.
Wall Thickness 1/4" (6.3 mm)
Base Dimensions 8" x 8" x 1/4" thick (203 x 203 x 6.3 mm)
Optimum Pouring Range 260°-290°F (12 6°-143 °C).
Weight Net 50 lbs. (22 .7 kg); Shpg. 52 lbs. (23 .6 kg).
