The results of strength testing of cement and other materials such as Lime and Fly Ash are dependent on the method and the quality of equipment used. A standard system for strength testing is based on compressive strength of mortar prisms. The results of strength testing are dependent not only on method but also on the quality and accuracy of the testing machine used to determine compressive or flexural strength.

The successful preparation and moulding of prisms, cubes and briquettes is essential if subsequent strength tests on the specimens are to be meaningful. Moulds should be manufactured from material which is capable of retaining its form under heavy usage. The equipment detailed in this section has been designed and manufactured to meet the requirements for moulding laid down in the various standards.

Two methods of moulding and compaction are used in the various testing standards. The jolting table method is usually described as the reference method and a vibratory method is permitted as an alternative.

Model No. Desc
39-1120 Feeding Hopper
39-1100 Three-gang Mould
39-1130 Scraper
39-1170 Mortar Sand

This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a remote mains switch box, incorporating a push button start/stop control, and automatic stop control at end of test.

Model No. Desc Voltage
39-1150/01 Jolting Table 220 - 240 V AC 50 Hz
39-1150/06 Jolting Table 220 - 240 V AC 60 Hz

Model No. Desc
39-0100 Cube Mould

Prior to testing, EN 196 requires prisms to be cured for a period of at least 24 hours at 20 ±1°C, 90% RH minimum. The prisms are then demoulded and stored under water for the required curing time, usually 48 hours, 72 hours, 7 and 28 days.

Prior to testing, ASTM C109 requires prisms to be cured for a period of at least 24 hours at 23ºC ±2ºC, 95 % RH minimum. The prisms are then de-moulded and stored under water for the required curing time, usually 48 hours, 72 hours, 7 and 28 days.

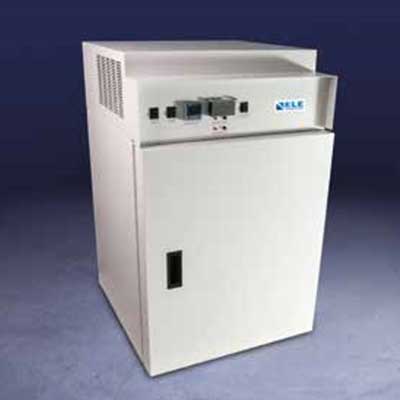

Model No. Desc Capacity, litres Voltage
39-1601/01 Humidity Cabinet 150 220 - 240 V AC 50 Hz 1ph
39-1601/06 Humidity Cabinet 150 220 - 240 V AC 60 Hz 1ph

Prior to testing, EN 196 requires prisms to be cured for a period of at least 24 hours at 20 ±1ºC, 90 % RH minimum. The prisms are then de-moulded and stored under water for the required curing time, usually 48 hours, 72 hours, 7 and 28 days.

Model No. Desc Capacity, litres Voltage
39-1300/24 Data Logger for Humidity Cabinet to EN 196 320 Litre capacity - -
39-1300/23 Spare shelf for Humidity Cabinets - -
39-1300/01 Humidity Cabinet 320 220 - 240 V AC, 50 Hz, 1 ph
39-1300/06 Humidity Cabinet 320 220 - 240 V AC, 60 Hz, 1 ph
39-1600/01 Humidity Cabinet 150 220 - 240 V AC 50 Hz 1ph
39-1600/06 Humidity Cabinet 150 220 - 240 V AC, 60 Hz, 1 ph
39-1300/10 Circular Charts - -

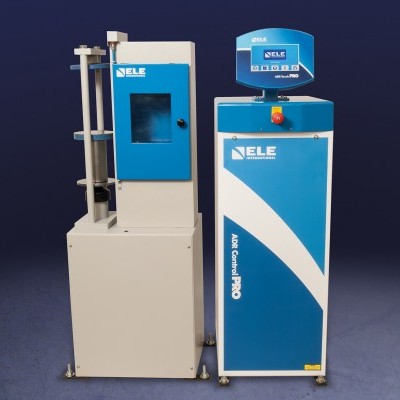

These Compression Machines come with a standard frame (2000 BS or 2000), which has an additional sensor attached, allowing you to test high strength concrete samples and low strength cement samples.

Model No. Voltage Desc Capacity, kN
39-7120 - 250 kN Compression Jig Upgrade Kit -
36-4131/01 220-240 V 50 Hz Dual sensor (low and high strength) 2000
36-5151/01 220-240 V 50 Hz Dual sensor (low and high strength) BS EN 2000
36-5151/06 220-240 V 60 Hz Dual sensor (low and high strength) BS EN 2000
36-4131/06 220-240 V 60 Hz Dual sensor (low and high strength) 2000
