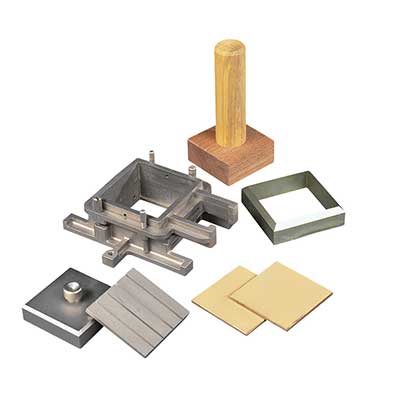

All ELE Shear Box Assemblies are designed to fit into the carriage of the EL26-2114 series Direct/Residual Shear Machines. They are supplied complete with two porous stones, one retaining stone and a loading pad. The four sizes offered comply with the relevant ASTM, AASHTO and BS standards.
All assemblies can be used for quick shear tests or drained/residual shear test applications.
|Model No.||Desc||Specimen Size|
|26-2114/10||Counter Balance Kit Complying With ASTM D3080||-||info »|
|26-2223||2.42″ Diameter Shear Box Assembly (California Type)||-||info »|

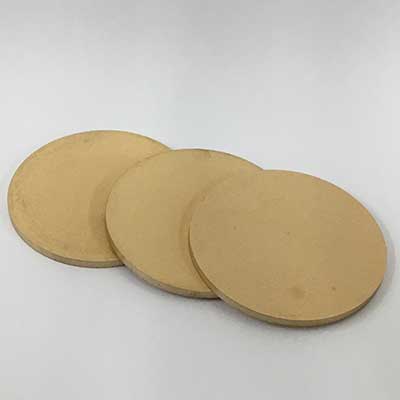

|26-2213/10||2.5" Diameter Porous plate||-||info »|
|26-2223/10||2.42″ Diameter Porous Stone (California Type)||-||info »|
|26-2197||Shear box assembly||100 x 100 mm||info »|
|26-2213||Shear box assembly||2.5" diameter||info »|
|26-2181||Shear box assembly||60 x 60 mm||info »|
|26-2185||Specimen cutter||60 x 60 mm||info »|
|26-2189||Specimen extrusion tool||60 x 60 mm||info »|
|26-2201||Specimen cutter||100 x 100 mm||info »|
|26-2205||Specimen extrusion tool||100 x 100 mm||info »|
|26-2217||Specimen cutter||2.5" dia||info »|
|26-2221||Specimen extrusion tool||2.5" dia||info »|
|26-2181/10||Porous plate||60 x 60 mm||info »|
|26-2197/10||Porous plate||100 x 100 mm||info »|
• Microprocessor controlled drive system.
• Large on-board LCD screen display.
• Direct entry of shear speeds via touch sensitive keypad.
• Rapid approach and return to start datum.
• Fully variable speed control from 0.000001” (0.00001 mm) to 0.399999” (9.99999 mm) per minute.

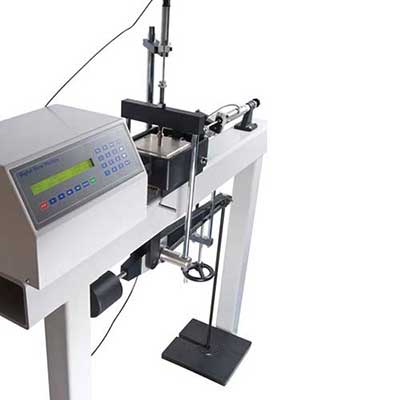

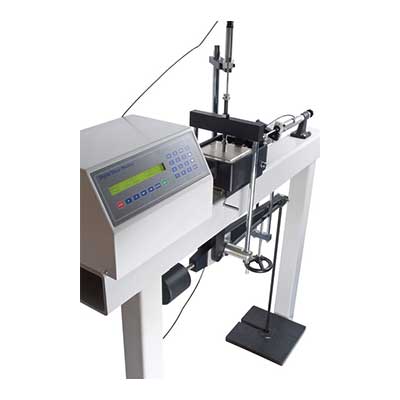

The ELE Direct/Residual Shear Apparatus uses a microprocessor controlled, menu-driven drive system with keyboard entry for precise shear speed setting and control. The use of a microprocessor controlled drive system and keyboard entry provides the unit with a wide range of features which include pause and speed reset during testing, RS232C interface for computer control, operator programming of speed and control functions, self-test diagnostics and many other features. A return to start datum provides a positive means of reversing the shear box when either preparing for a new test or continuing with residual testing procedures. Safety forward/reverse travel limit switches are incorporated into the system as standard and are monitored through the electronics.
The electronics are housed in a modern styled shroud, which is adjustable for optimum viewing. The apparatus is enclosed in a durably constructed case and has been designed for bench mounting. The apparatus is supplied complete with carriage, loading weight hanger and 10:1 lever ratio loading device.
Shear Box, indicators/transducers, proving ring or loading weights are needed for test; not included, order separately.
|26-2114/01||Digital Direct/Residual Shear Apparatus||220-240 V 50/60 Hz||info »|
|78-0160||Load ring - 3 kN||-||info »|
|88-4210||Electronic Digital Indicator, 0.600″/15 mm range||-||info »|
|78-0060||Load ring - 2 kN||-||info »|
|25-0440||Vertical Dial Indicator, Metric||-||info »|
|78-0260||Load ring - 4.5 kN||-||info »|
|26-2114/02||Digital Direct/Residual Shear Apparatus||110-120V 50/60Hz||info »|
|88-4100||Mechanical Dial Indicator - 1.0" Range||-||info »|
|88-4110||Mechanical Dial Indicator - 25 mm Range Clockwise Movement||-||info »|
|25-0445||Vertical Dial Indicator, English||-||info »|
This test set includes all of the basic equipment required to perform direct/residual shear testing on either 2.5” diameter or 60 mm square soil specimens.
|2100/02||Direct/Residual Shear Test Set 110vAC English||info »|
|2101/01||Direct/Residual Shear Test Set 220vAC Metric||info »|
|2101/02||Direct/Residual Shear Test Set 110vAC Metric||info »|
|2100/01||Direct/Residual Shear Test Set 220vAC English||info »|
This test set includes equipment required to perform direct/residual shear testing on either 2.5” diameter or 60 mm square soil specimens with automated data logging, analysis, and reporting.
Computer hardware and peripherals required for system operation; not included. Contact factory for system requirements.
See Data Aquisition section for specifications of electronic displacement and logging equipment.
|2102/01||DataSystem Direct/Residual Shear Test Set 220vAC English||info »|
|2102/02||DataSystem Direct/Residual Shear Test Set 110vAC English||info »|
|2103/01||DataSystem Direct/Residual Shear Test Set 220 vAC Metric||info »|
|2103/02||DataSystem Direct/Residual Shear Test Set 110vAC Metric||info »|
• Determines shear strength of cohesive soils in the laboratory or in the field.
• Lightweight, rust resistant construction.
• Includes three interchangeable vanes.

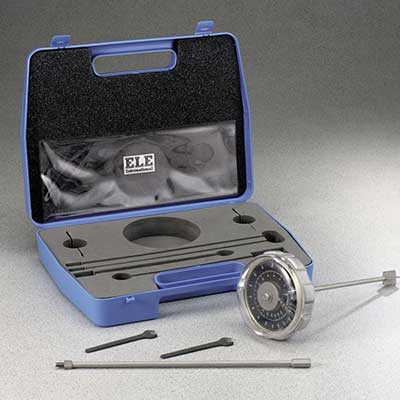

The Torvane Shear Device enables the operator to rapidly determine the shear strengths of cohesive soils, in the laboratory or in the field.
The Torvane is simple to use and needs no extensive specimen preparation. All that is required is a flat sample area of at least 2” (50 mm) in diameter.
|26-2261/10||Sensitive Vane||info »|
|26-2261/12||Standard Vane||info »|
|26-2261/14||High-Capacity Vane||info »|
|26-2261||Torvane Shear Device||info »|
|26-2275/10||Set of 4 calibrated springs (spare)||info »|
|26-2279||Vane 12.7 mm x 12.7 mm long||info »|
|26-2281||Vane 12.7 mm dia X 19 mm long||info »|
|26-2283||Vane 12.7 mm dia x 25.4mm long||info »|

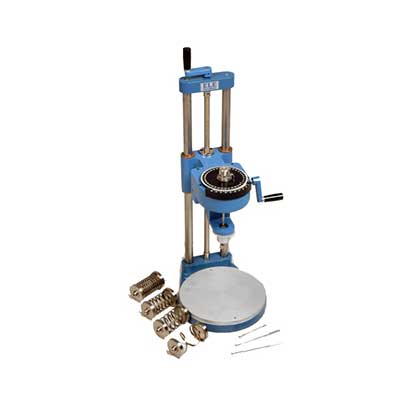

|26-2270||Laboratory Vane Apparatus||info »|
|26-2289||Attachment Clamp for 38 mm and 100 mm Sample Tubes||info »|
