• European and ASTM methods
• Revolution counter
• Safety cut-out
• Full width cover

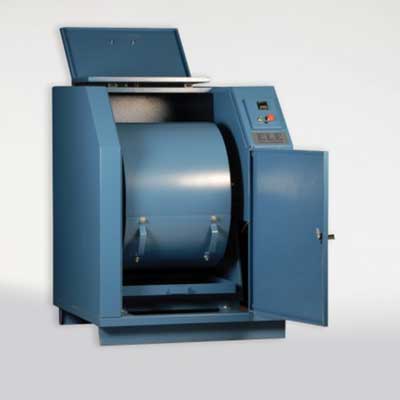

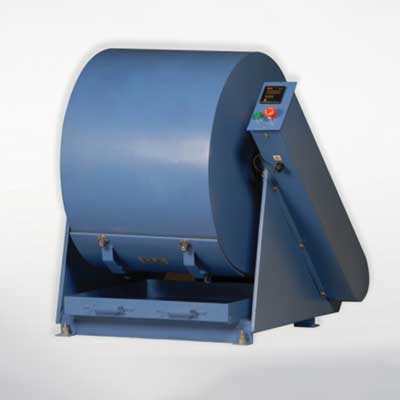

The Los Angeles Machine comprises a heavy steel cylinder, rotated about its horizontal axis. The cylinder incorporates a removable internal shelf, as specified in the ASTM and EN test methods. The steel cylinder is manufactured from structural steel plate conforming to S275 of EN 10025:1993.

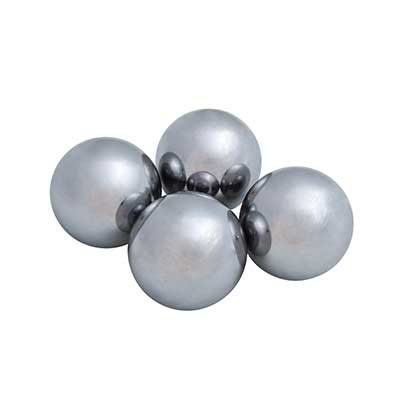

The filling aperture is provided with a cover and a safety stop button is prominently positioned. The machine is fitted with a revolution counter and steel tray for specimen unloading. Supplied without abrasive charges which should be ordered separately.
The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework. Also the full enclosure ensures noise is minimized.
The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening.
The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards.
Controls are located easily on the right-hand side of the machine at convenient operator height.
Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework. Also the full enclosure ensures noise is minimized.
The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening.
The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards.
Controls are located easily on the right-hand side of the machine at convenient operator height.
Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework.
The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening.
The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards.
Controls are located easily on the right-hand side of the machine at convenient operator height.
Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
The machine consists of a closed hollow cylindrical steel drum rotating around its horizontal axis on ball bearing units mounted on a sturdy base framework.
The drum is driven at a speed of between 30 - 33 rpm via an enclosed belt drive arrangement from an electric motor/gearbox unit situated on the base frame. Inside the drum a full length steel shelf is attached, accessed by a dust-proof opening.
The cylinder incorporates a removable internal shelf, one shelf position is provided to meet the requirements of both the ASTM and EN test standards.
Controls are located easily on the right-hand side of the machine at convenient operator height.
Start and stop push buttons and a subtracting revolution counter allows the user to preset the number of revolutions before an automatic stop.
