Direct/Residual Shear Test Set

This test set includes all of the basic equipment required to perform direct/residual shear testing on either 2.5” diameter or 60 mm square soil specimens.

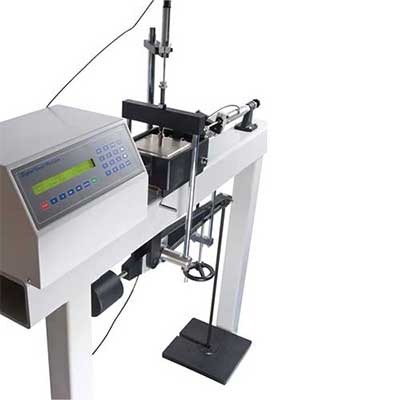

Direct/Residual Shear Test Set 220vAC English

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/01).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 Vertical Dial Indicator (25-0445 or 25-0440).
1 Horizontal Dial Indicator (88-4100 or 88-4110).
1 Proving Ring 1000lb/4.5kN (78-0260).
1 Weight Set (25-0535).

info »
2100/01

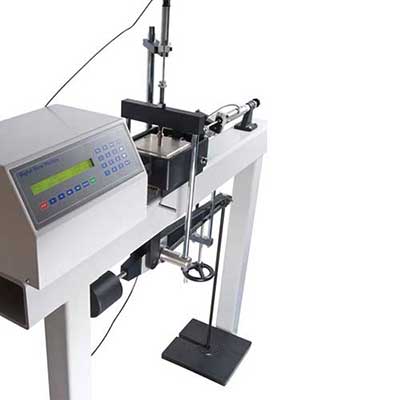

Direct/Residual Shear Test Set 110vAC English

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/02).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 Vertical Dial Indicator (25-0445 or 25-0440).
1 Horizontal Dial Indicator (88-4100 or 88-4110).
1 Proving Ring 1000lb/4.5kN (78-0260).
1 Weight Set (25-0535).

info »
2100/02

Direct/Residual Shear Test Set 220vAC Metric

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/01).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 Vertical Dial Indicator (25-0445 or 25-0440).
1 Horizontal Dial Indicator (88-4100 or 88-4110).
1 Proving Ring 1000lb/4.5kN (78-0260).
1 Weight Set (25-0535).

info »
2101/01

Direct/Residual Shear Test Set 110vAC Metric

Set includes:
1 Direct/Residual Shear Apparatus (26-2114/02).
1 2.5” diam. or 60 mm square Shear Box (26-2213 or 26-2181).
1 2.5” diam. or 60 mm square Specimen Cutter (26-2217 or 26-2185).
1 2.5" dia. or 60 mm square Specimen Extrusion Tool (26-2189 or 26-2221).
1 Vertical Dial Indicator (25-0445 or 25-0440).
1 Horizontal Dial Indicator (88-4100 or 88-4110).
1 Proving Ring 1000lb/4.5kN (78-0260).
1 Weight Set (25-0535).

info »
2101/02
