Compression Frame Jig Assembly

39-5600

Category:

Mixing, Moulding, Curing and Strength

Sub Category:

Strength

Product Group:

Cement Testing Accessories

Does come as standard with 39-7160/01 and 39-7160/06.

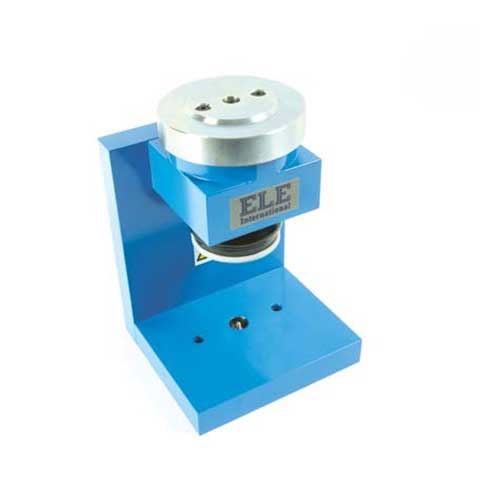

This jig assembly is designed for the compression testing of 40 x 40 x 160 mm mortar prisms after breaking in flexure, also for the testing of 50 mm and 2 in square mortar cubes using the appropriate platens. The frame is fitted with a spherical ball seating assembly to which is attached the upper platen.



Note: Compression Jig Assembly shown with platen; not included; order separately.

Description Compression Frame Jig Assembly
ASTM C109 Yes
EN 196-1 Yes

40mm Square Platen Set

39-5600/10

Does come as standard with 39-7160/01 and 39-7160/06.

Pair of Square Platens 2"

39-5600/11

Does come as standard with 39-7160/01 and 39-7160/06. For use on both 2" and 50 mm cubes.
