Automatic Penetrometer

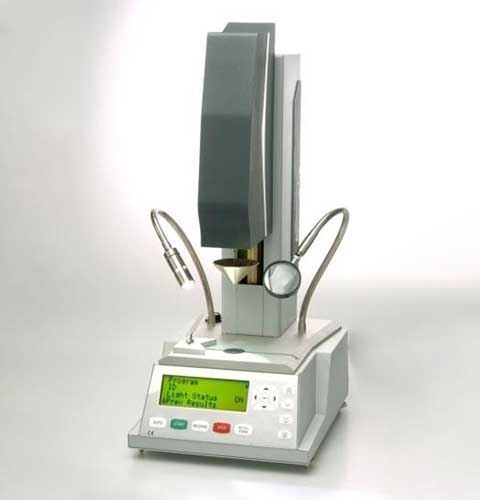

Automatic Penetrometer

46-5380/01

• Fully automatic
• Built-in software
• Four programmable reference positions for cone holder assy
• Stepper motor for penetration depth as low as 0.01 mm
• Programmable Penetration time between 0 and 999 min
• Range: 0 to 75 mm
• Results: in 1/10 mm on full range
• Microprocessor control
• Optoelectronic penetration direction

Includes: Holder for accessories, magnifying lens and low voltage illuminator, centering guide with screw and nut, power cord, set of 2 fusibles, RS232C output, accessories for automatic level detection for  conductive sample comprising probe cable, mini grip & test probe and instruction manual.  Supplied without penetration needles.

Standards: ASTM D 5 - ISO EN 1426 - IP 49 - DIN 52010 & D 217 - ISO 2137 - IP 50 - DIN 51580 & D 937 - IP 179 - DIN 51579 & D 1321 - ISO 3992 - DIN 51579  & D 1403- ISO 6298 - IP 310
