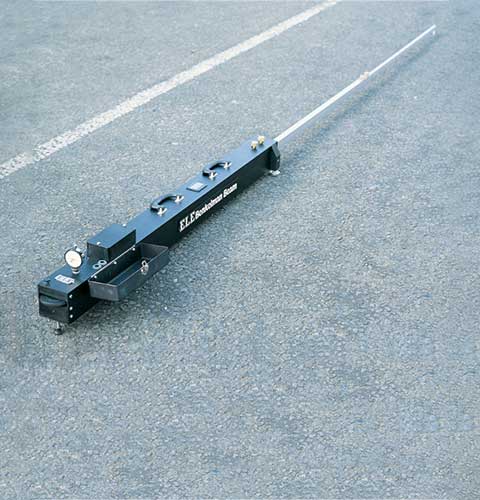

Benkelman Beam

47-1460

Category:

Pavement, Asphalt

Sub Category:

Surface Regularity, Pavement, Surface Regularity

Product Group:

Benkelman Beam, Benkelman Beam

Complete with Dial Gauge 25 mm travel x 0.01 mm divisions.

Complete with Dial Gauge 25 mm tavel x 0.02 mm divisions.

Description Benkelman Beam
Open Length, ft. 12
AASHTO T256 Yes



Specification

Dimensions: Main Body (length), Arm (telescopic) extended, Operating length fully extended 1397 mm, 2400 mm, 3700 mm
Beam fulcrum ratio 2:1
Weight 15.9 kg





Specifications

Main Body 55 ” (1,397 mm) long, black finish aluminum.
Probe Beam Aluminum, 8 ft. (2.4 m) long, telescopes into case for storage.
Probe Fulcrum Ball pivot bearing, gives lever ratio of 2:1.
Vibrator System Operating switch mounted on top of instrument section (requires 4 “D” size batteries).
Dial Indicators Compensated for direct reading (not included).
Leveling Wheel Adjusts beams to proper elevation.
Open Length 12 ft. (3.7 m) l.
Weight Net 29 lbs. (13.2 kg).
