Specification

  • Max Temp (°C): 163
  • Dimensions: Internal (HxWxD)  : 380 x 520 x 460 mm
  • Dimensions: External (HxWxD): 570 x 870 x 630 mm
  • Insulation: Double wall
  • Internal material: 304 stainless steel
  • Turntable speed (rpm): 5.5
  • Max power (W): 1500

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Spare/Consumable Spare turntable for Loss on Heat/Thin Film Oven 220-240V 50 Hz (Loss on Heat Test) 46-4100/10 NA Visit Page
Spare/Consumable Spare turntable for Loss on Heat/Thin Film Oven 220-240V 50 Hz (Thin Film Test) 46-4100/11 NA Visit Page

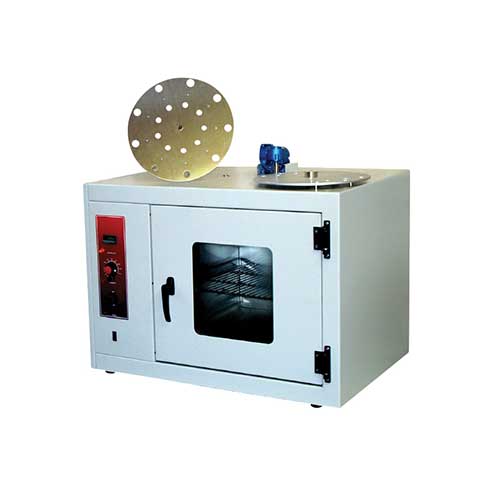

The Thin-Film Oven is used for determining the loss in mass of oil and asphaltic/bituminous compounds when heated with the loss on heating test method or the effect of heat and air on semi-solid asphaltic/bituminous materials with the Thin-Film Oven (TFO) test method.

Features:

  • The exterior is constructed from sheet steel finished in an easy clean powder-coated paint.
  • Interior chamber is made from Stainless Steel.
  • The unit is well insulated and has a double glass door for viewing the test chamber.
  • The system is controlled by a microprocessor digital controller and overheat thermostat.
  • Calibrated scale and tamper-proof lock.
  • Temperature is controlled and pre-set at 163°C +/- 1°C
  • Two rotating platforms of 13.5 inches diameter are supplied to perform both the tests. Side mounted controls comprise:
  • Microprocessor digital control.
  • Independent overheat thermostat.
  • Mains switch.
  • On/off switch for the turntable motor.
  • Indicator lamps.

Complies to EN 12607-2, BS 2000-460-2, EN 13303, ASTM D6/D6M, ASTM D1754/D1754M, AASHTO T47, AASHTO T179
