Sand Grading Chart

23-7130

Category:

Soils

Sub Category:

Soil Index Properties, Classification

Product Group:

Sand Grading Chart

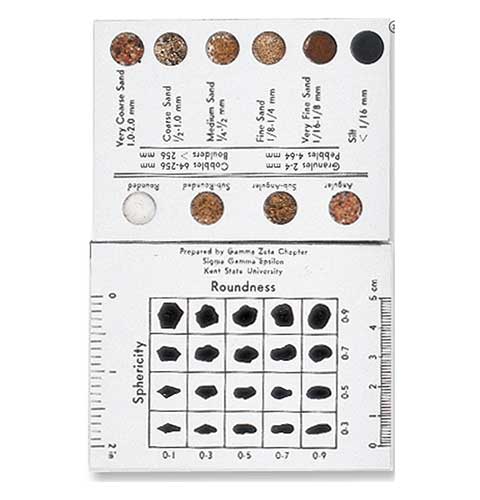

Pocket-sized folder enables the field geologist to quickly and accurately identify grain size and shape, grain sorting, roundness, and sphericity of a sample. Consists of sphericity/roundness measuring chart; printed examples of well-sorted and poorly-sorted grain samples in fine, medium, and coarse ranges; four actual grain samples illustrating angular, subangular, subrounded, and rounded shapes; six grain size samples: silt, very fine sand, fine sand, medium sand, coarse sand, and very coarse sand. Measurement limits for granules, pebbles, cobbles, and boulders indicated.

Log in

You must log in to your ELE account to view prices and place your order.

Particle Panels Angular; sub-angular; sub-rounded and rounded.
Description Sand Grading Chart



Specifications

Sample Panels Very coarse; coarse; medium; fine; very fine; silt.
Particle Shape Panels Angular; sub-angular; sub-rounded and
rounded.
Chart Size 3-1/4” w. x 4” h. (83 x 102 mm).
Weight Net 1 oz. (28 g).

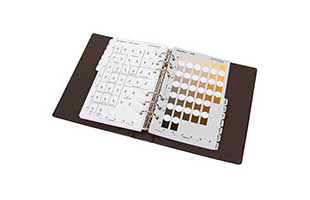

Soil Colour Chart Set
