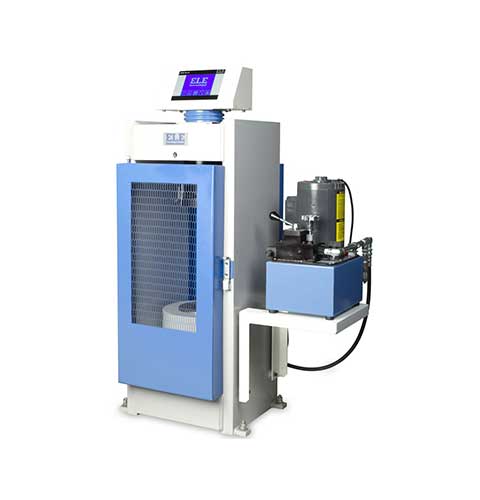

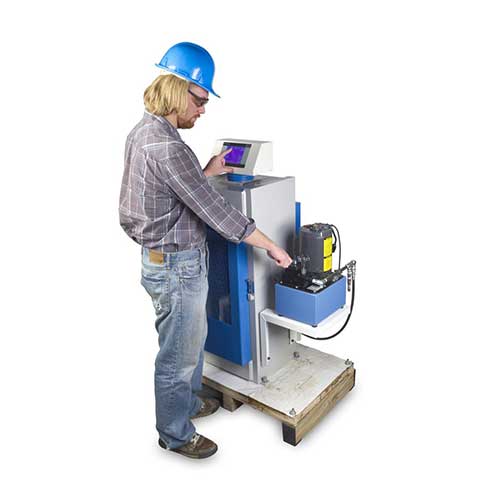

Accu-Tek Touch 500 Series 110V/60Hz

36-3095/02

Category:

Concrete

Sub Category:

Compression Machines

Product Group:

Accu-Tek Touch 500 Series

110vAC, 60 Hz, 1ø.
Range, lbf 5,000 - 500,000
ASTM C39 Yes
AASHTO T22 Yes
Description Accu-Tek Touch 500 Series 110V/60Hz

Specifications

Capacity500,000 lbf (2,224 kN)
Vertical Clearance19.62" (498 mm) without upper platen assembly from top of lower block
Horizontal Clearance14" (355 mm) between uprights
Ram8.75" (222 mm) diameter; 2.5" (64 mm) stroke with overtravel limit switch protection
Pump1 h.p (0.7 kw) electro-hydraulic pump mounted within reservoir with overload protection
Hydraulic ControlsPressure compensated flow control valve with 4-position control lever and adjustable flow valve. Pump Start/Stop Push-buttons.
Lower Platen12" w x 16" d x 2" h (305 x 406 x 50 mm) with scribed concentric circles and lines
Display System5.7" (145 mm) touch screen display, incorporating full key pad (QWERTY type); pace deviation bargraph; automatic stress calculation; 2 GB of internal memory for storing thousands of test results; download data to PC via USB or to printer via RS-232 interface.
Range5,000 to 500,000 lbf (22.4 to 2,224 kN)
AccuracyFactory calibrated to within 1.0% of reading - from 1% to 100% of machine capacity
Dimensions31.25" w x 21" d x 50.75" h (794 x 533 x 1,289 mm)
WeightNet 1,700lbs (771 kg)

Upper platen assembly and frame stand not included, order separately

Accutek Oil

9806-0016

Ram Seal

4699-1316
