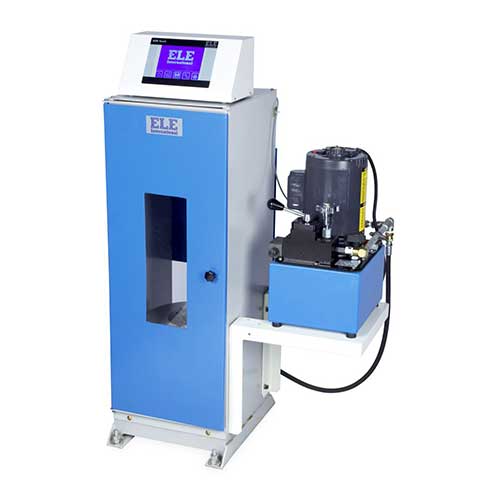

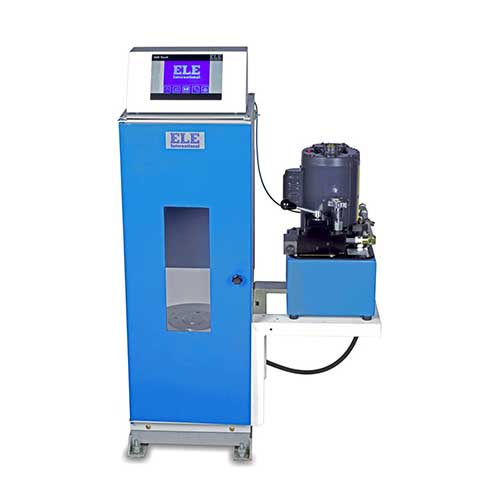

Accu-Tek Touch 350 Series 220V/60Hz

« return

Accu-Tek Touch 350 Series 220V/60Hz

36-0735/06

Category:

Concrete

Sub Category:

Compression Machines

Product Group:

Accu-Tek Touch 350 Series

220vAC, 60 Hz, 1ø.

Range, lbf 3,500 - 350,000
ASTM C39 Yes
AASHTO T22 Yes
Description Accu-Tek Touch 350 Series 220V/60Hz



Specifications

Capacity 350,000 lbf (1,555 kN)
Vertical Clearance 19.75" (502 mm) without upper platen assembly from top of lower block
Horizontal Clearance 11.5" (292 mm) between uprights
Ram 7.716" (196 mm) diameter; 2" (50 mm) stroke
Pump 2 h.p (0.7 kw) electro-hydraulic pump mounted within reservoir with overload protection
Controls Pump-mounted pressure compensated flow control valve with 4-position control lever and adjustable flow valve. Pump on/off switch.
Lower Platen 10" w x 14" d x 1" h (254 x 355 x 25.4 mm)
Display System 5.7" (145 mm) touch screen display, incorporating full key pad (QWERTY type); pace deviation bargraph; automatic stress calculation; 2 GB of internal memory for storing thousands of test results; download data to PC via USB or to printer via RS-232 interface.
Range 3,500 to 350,000 lbf (15.5 to 1,555 kN)
Accuracy Factory calibrated to within 1.0% of reading - from 1% to 100% of machine capacity.
Dimensions 27” w. x 18” d. x 44 ” h. (686 x 45 7 x 1,11 8 mm).
Weight Net 850 lbs. (385 kg).

Upper platen assembly and frame stand not included, order separately

Accutek Oil

9806-0016
