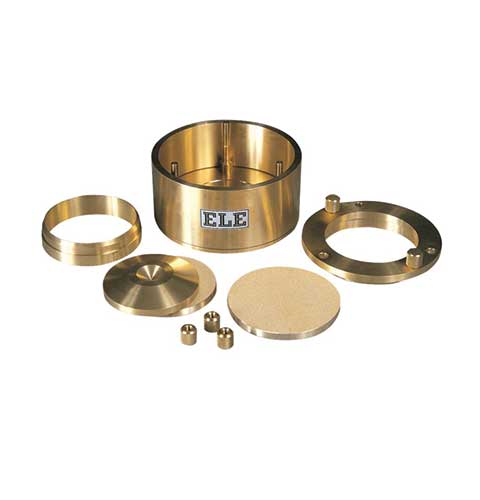

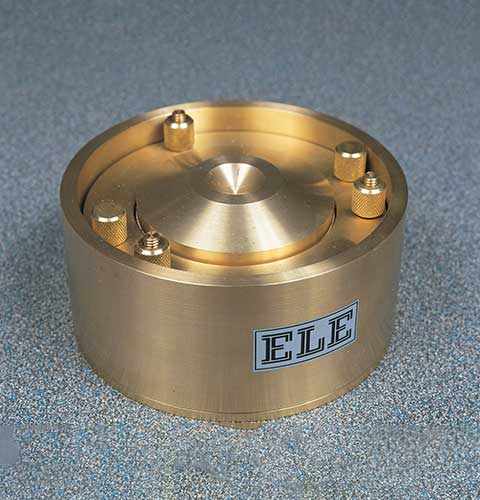

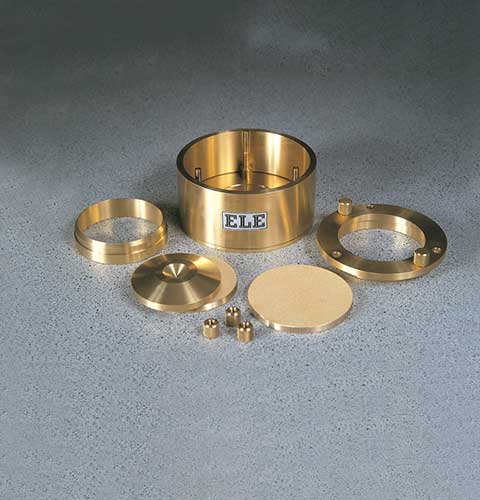

Consolidation Cell/ Oedometer Complete 75mm Diameter Sample

25-0503

Category:

Consolidation Apparatus, Soils

Sub Category:

One-Dimensional Consolidation, Manual Consolidation

Product Group:

Table Top Consolidation Apparatus, BS EN consolidation cells and accessories, Pneumatic Consolidation Apparatus, Fixed Ring Consolidation

Log in

You must log in to your ELE account to view prices and place your order.

Description Consolidation cell 75 mm
Sample diameter 75 mm
Stress for 1 kg, kPa 20



Specification

Application BS/EN 10:1
Specimen Dia 75 mm
Specimen area 4418 mm²
Beam ratio 9:1
Load kg 1
Stress 20 kPa
Typical max stress 3.2 MPa
Stress for 1 kg m² 20 kPa



The following table shows typical loading of cells giving unit stress when used with the ELE Table Top Consolidation Apparatus

Specifications

Application BS
Specimen Diameter 75 mm
Specimen Area 4418 mm²
Beam Ratio 10:01
Load 1 kg
Stress 20 kPa
Typical Maximum Stress 3.2 MPa
Stress for 1 kg 20 kPa



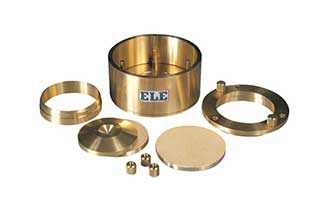

Consolidation Cell Complete 50mm Diameter Sample.

25-0455

- 50 mm dia samples - Integral water reservoir  - Supplied with upper and lower porous disc and cutting ring - Manufactured from corrosion resistant materials  - Maximum working stress 8 mpa
