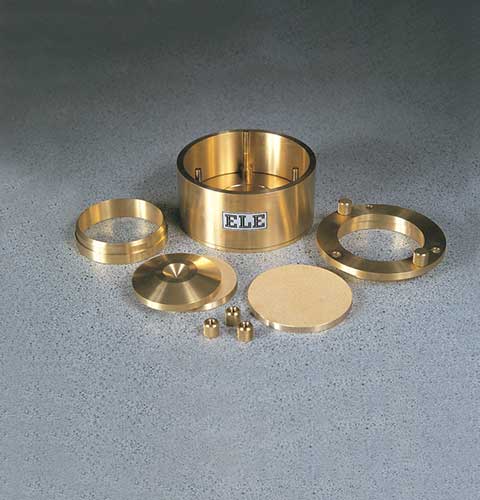

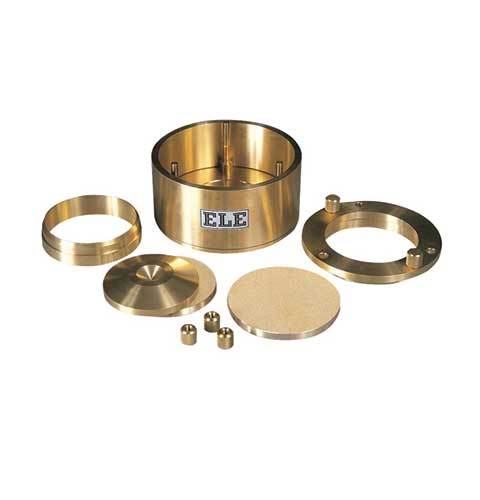

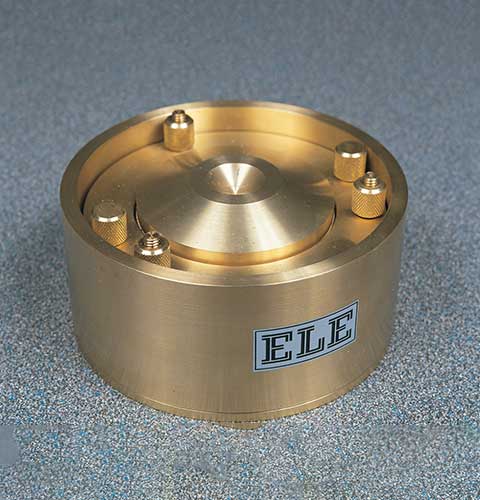

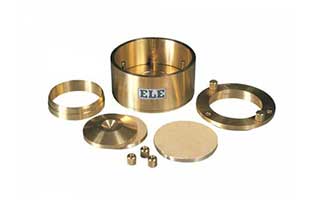

Consolidation Cell Complete 50mm Diameter Sample.



Consolidation Apparatus, Soils

Sub Category:

One-Dimensional Consolidation, Manual Consolidation

Product Group:

Table Top Consolidation Apparatus, Pneumatic Consolidation Apparatus, Fixed Ring Consolidation, High pressure application consolidation cells and accessories

- 50 mm dia samples

- Integral water reservoir

- Supplied with upper and lower porous disc and cutting ring

- Manufactured from corrosion resistant materials

- Maximum working stress 8 mpa

Description Consolidation cell 50 mm
Sample diameter 50 mm
Stress for 1 kg, kPa 50



Application High pressure
Specimen Dia 50 mm
Specimen area 1963 mm²
Beam ratio 10:1
Load kg 1
Stress 50 kPa
Typical max stress 8 MPa
Stress for 1 kg m² 50 kPa


The following table shows typical loading of cells giving unit stress when used with the ELE Table Top Consolidation Apparatus


Application High Pressure
Specimen Diameter 50 mm
Specimen Area 1963 mm²
Beam Ratio 10:01
Load 1 kg
Stress 50 kPa
Typical Maximum Stress 8 MPa
Stress for 1 kg 50 kPa
