A versatile modular steel stand. Holes in the shelf are provided for
securing up to three EL25-0402 Consolidation Frames. Dimensions 610 x 915 x 865 mm (l x w x h).

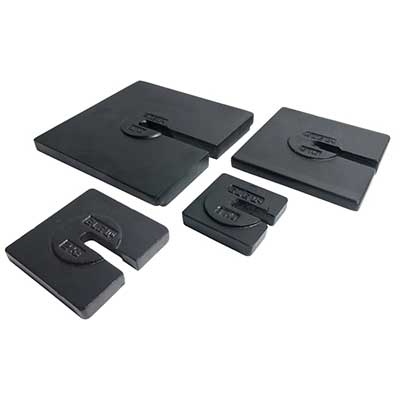

9 x 10 kg, 1 x 5 kg, 2 x 2 kg, 1 x 1 kg.info »
• High capacity – 8800 kPa on 50 mm diameter specimens using 11:1 beam ratio
• Triple beam ratio, 9:1, 10:1, 11:1
• Compact unit ensures maximum space saving
The ELE Oedometer is rigidly constructed to ensure minimum frame distortion. The frame is designed to load the specimen through a yoke assembly and one of three alternative beam ratios. The beam is fitted with a counterbalance weight and beam support jack. The cell platform will accept the complete range of ELE consolidation cells and is fitted with a central spigot to ensure accurate centring of the cell under the loading yoke. Dimensions without hanger 711 x 203 x 508 mm (l x w x h). Weight 24 kg.
PLEASE NOTE: 25-0402 does not come with a mounting stand, cell or a transducerinfo »
