Consolidation Frame One Dimensional Consolidation Incremental Loading Device.

« return

Consolidation Frame One Dimensional Consolidation Incremental Loading Device.

25-0402

Category:

Consolidation Apparatus, Soils

Sub Category:

One-Dimensional Consolidation, Manual Consolidation

Product Group:

Consolidation Apparatus, Table Top Consolidation Apparatus

• High capacity – 8800 kPa on 50 mm diameter specimens using 11:1 beam ratio
• Triple beam ratio, 9:1, 10:1, 11:1
• Compact unit ensures maximum space saving

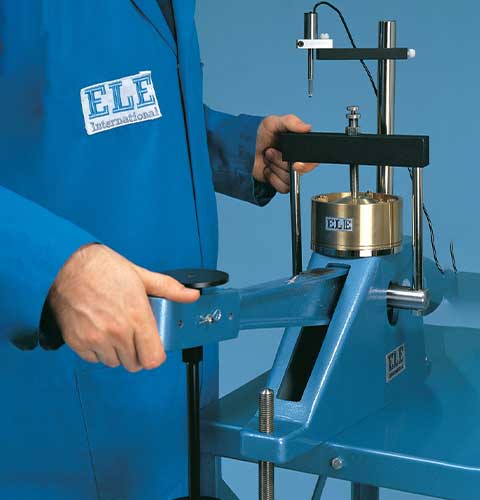

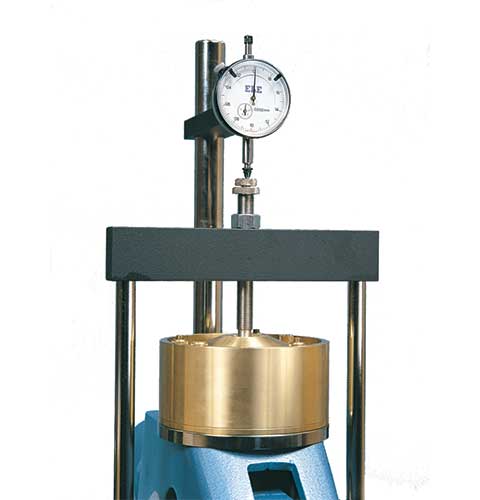

The ELE Oedometer is rigidly constructed to ensure minimum frame distortion. The frame is designed to load the specimen through a yoke assembly and one of three alternative beam ratios. The beam is fitted with a counterbalance weight and beam support jack. The cell platform will accept the complete range of ELE consolidation cells and is fitted with a central spigot to ensure accurate centring of the cell under the loading yoke. Dimensions without hanger 711 x 203 x 508 mm (l x w x h). Weight 24 kg.

PLEASE NOTE: 25-0402 does not come with a mounting stand, cell or a transducer

Supplied without dial gauge and weights.

Description Consolidation frame
Loading Beam Cast aluminum; counterbalanced; 9:1,10:1 and 11:1 ratios.
ASTM D2435 Yes
ASTM D4546 Yes
AASHTO T216 Yes
ASTM D3877 Yes
BS 1377-5 Yes



Specifications

Load Capacity 48 tons/sq. ft. (5,14 8 kPa) on 2.5” (63 mm) diam. samples.
Loading Beam Cast aluminum; counterbalanced; 9:1,10:1 and 11 :1 ratios.
Frame Cast aluminum; integral beam support jack; plated steel and platform.
Dimensions  203 x 711 x 508 mm, (8” w. x 28” d. x 20” h) .
excluding weight hanger.
Weight 24 KG



16 Ton Weight Set

25-0544

Includes: two 1/16 ton, one 1/8 ton, one 1/4 ton, one 1/2 ton, one 1 ton and seven 2 ton weights.

2.416" Stainless Steel Consolidation Cell

25-0489

Stainless Steel Construction Long lasting Includes upper, lower porous discs and cutting ring Complies to ASTM D2435

2.5" Stainless Steel Consolidation Cell

25-0490

Stainless Steel Construction Long lasting Includes upper, lower porous discs and cutting ring Complies to ASTM D2435

50mm Stainless Steel Consolidation Cell

25-0446

Stainless Steel Construction Long lasting Includes upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

75mm Stainless Steel Consolidation Cell

25-0467

Stainless Steel Construction Long lasting Includes upper, lower porous discs and cutting ring Complies to ISO 17892-5 and BS 1377-5

Electronic Digital Indicator, 0.600"/15 mm range

88-4210

Resolution of 0.0001" (0.002 mm)

Floor Mounting Stand.

25-0429

A versatile modular steel stand. Holes in the shelf are provided forsecuring up to three EL25-0402 Consolidation Frames. Dimensions 610 x 915 x 865 mm (l x w x h).

Set of Weights 100Kg Total Weight.

25-0408

9 x 10 kg, 1 x 5 kg, 2 x 2 kg, 1 x 1 kg.

Weight Set A

25-0535

Includes: four 1 kg, five 4 kg, and four 16 kg weights.

Weight Set B

25-0537

Includes: four 1 kg, three 4 kg and one 16 kg weights.

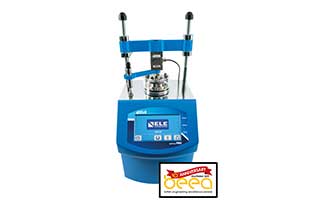

AUTO Soils Consolidator

25-0500/09

Designed and engineered for geotechnical laboratories to deliver new levels of efficiency in testing procedures. The one-dimensional consolidation test is the most common, and sometimes referred to as the oedometer or incremental loading oedometer test. Radially constrained samples are loaded in a sequence starting with a stress close to the…

Pneumatic Consolidation Apparatus

25-0560

32 tsf capacity.
