Specification

  • Power Supply: 220 V AC, 50 Hz
  • Measuring Cell Sizes: ASTM: 60 mm; EN: 70 mm
  • Cell Volumes: ASTM: 132,994 mm³; EN: 176,976 mm³
  • Penetration Accuracy: ±0.1 mm
  • Timer Accuracy: ±1 second
  • Dimensions (L × W × H): 378 × 180 × 410 mm
  • Weight: 16 kg

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code

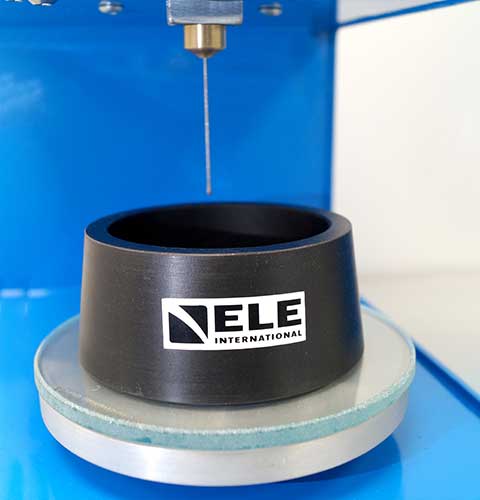

Accessories ASTM Vicat Mould 38-2660 NA Visit Page
Accessories EN Vicat Mould 38-2300 NA Visit Page
Accessories Mould Tank 38-2015/15 NA Visit Page
Accessories Needle Cleaning Device 38-2015/12 NA Visit Page
Accessories Printer Paper Rolls 38-2015/14 NA Visit Page
Accessories Vicat Mould 38-2200 NA Visit Page
Spare/Consumable ASTM Initial and Final Set Needle 38-2023 NA Visit Page
Spare/Consumable Consistency Plunger 38-2015/16 NA Visit Page
Spare/Consumable EN Initial and Final Set Needle 38-2021 NA Visit Page

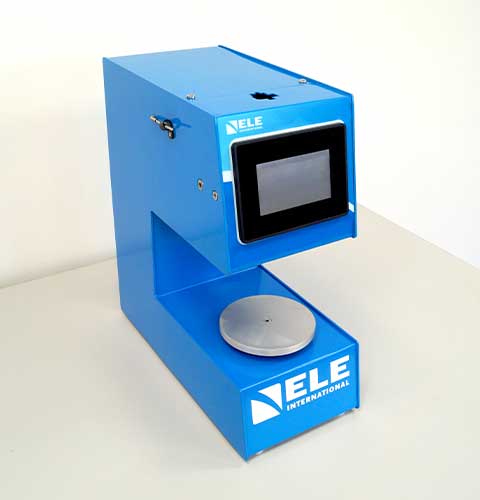

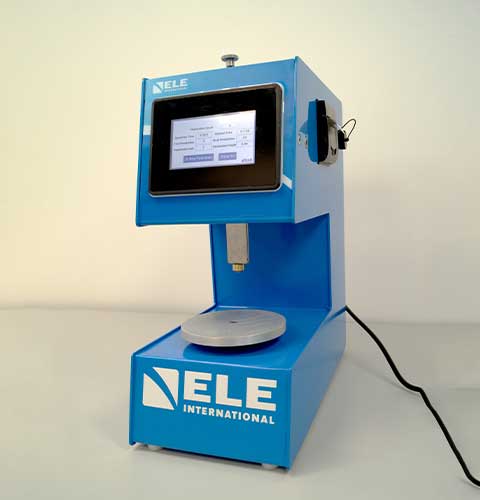

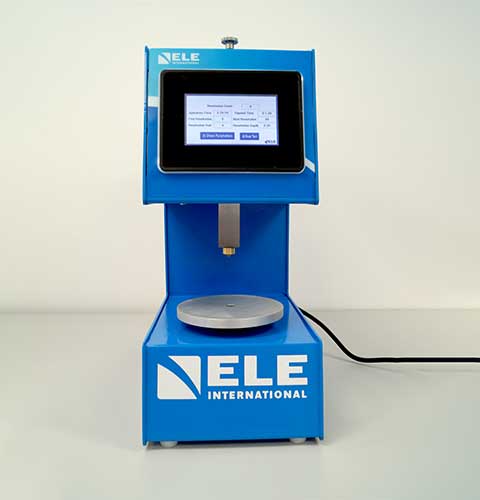

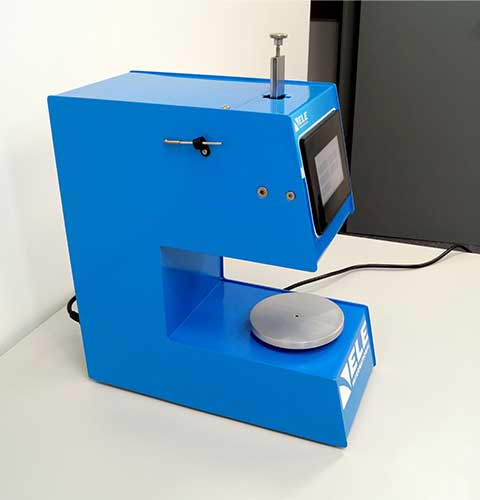

The Auto Vicat Apparatus by ELE International is designed for the automated determination of initial and final setting times of cement, mortar, and plaster. With full compliance to EN 196-3 and ASTM C191 standards, this high-performance system ensures precise penetration measurements using a motorised needle assembly and digital encoder. Its user- friendly interface, integrated touchscreen, and automated data logging provide enhanced accuracy and test efficiency.

  • Product Code: 38-2015/01
  • Application: Determination of initial and final setting times
  • Testing Materials: Cement, mortar, plaster
  • Conforms to Standards: EN 196-3 and ASTM C191
  • Operation: Fully automated with programmable cycles

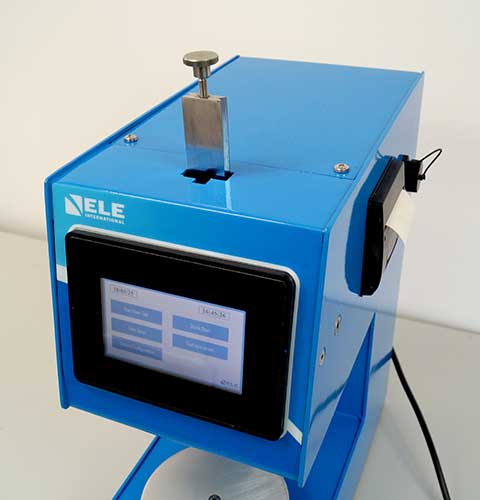

  • Interface: Digital touchscreen with intuitive controls
  • Data Handling: Real-time results display and USB export
  • Penetration Accuracy: ±0.1 mm
  • Timer Accuracy: ±1 second
