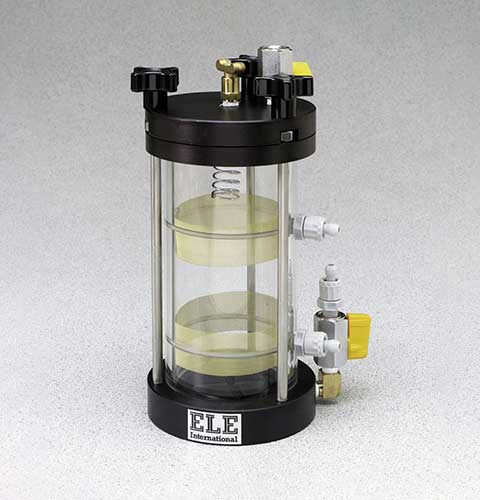

Constant Head Sand/Gravel Permeameters, 3" (76.2 mm)

« return

Constant Head Sand/Gravel Permeameters, 3" (76.2 mm)

25-0562

Category:

Soils

Sub Category:

Permeability

Product Group:

Constant Head Sand/Gravel Permeameters

3.0” (76.2 mm) i.d.

Manometer Panel and Constant Head Tank System; not included, order separately.

Description Constant Head Sand/Gravel Permeameters, 3" (76.2 mm)
Clamping Rods Three; quick release type.
ASTM D2434 Yes



Specifications

Construction Anodized aluminum end caps and clamping ring acrylic chamber.
Manometer Parts Two. Located on the acrylic chambers side
wall. The distances between ports are equal to the diameter
Clamping Rods Three; quick release type.
Weights Net 7-12 lbs. (3.2-5.4 kg).



Constant Head Tank System

25-0568

The system consists of an acrylic tank with regulating valve for flow control of water. A porous media is used at the bottom of the tank to filter out air bubbles.The unit maintains a constant water head by utilizing an overflow port. It also allows for connection to a tap…

Wall Mounted Manometer Panel

25-0567

The Manometer Panel features two acrylic tubes and valving mounted on an aluminum rail with a 100 cm long dualgraduated scale. Each tube has its own valve, making it possible to run two independent permeability tests.

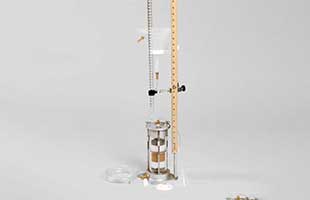

Combination Permeameter, 2.5" (63.4 mm)
