Wall Mounted Manometer Panel

« return

Wall Mounted Manometer Panel

25-0567

Category:

Soils

Sub Category:

Permeability

Product Group:

Constant Head Sand/Gravel Permeameters, Manometer Panel

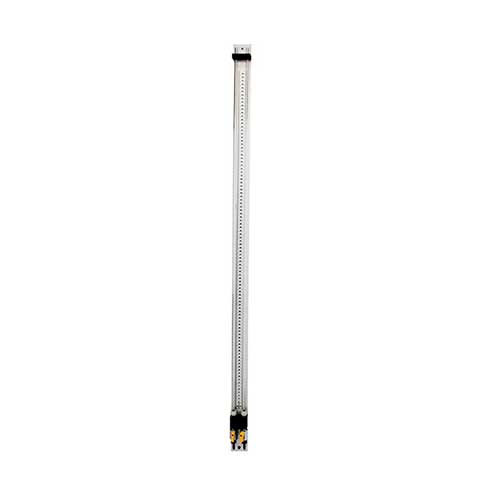

The Manometer Panel features two acrylic tubes and valving mounted on an aluminum rail with a 100 cm long dualgraduated scale. Each tube has its own valve, making it possible to run two independent permeability tests.

Flow Tubes Acrylic; each with its own flow control valve.
ASTM D2434 Yes
Description Wall Mounted Manometer Panel



Specifications

Scale 100 cm long with cm and mm graduations.
Rail Aluminum construction with holes for wall
mounting.
Flow Tubes Acrylic; each with its own flow control valve.
Weights Net 7 lbs. (3.2 kg).
