GDU 8 Channel Data Acquisition Unit 100-120 V 60 Hz

27-1500/02

Category:

Data Logging, Software and Electronic Instrumentation, Soils

Sub Category:

Electronic Instrumentation, Data Acquisition

Product Group:

Data Logging with the GDU, Geotechnical Data Acquisition Unit (GDU)

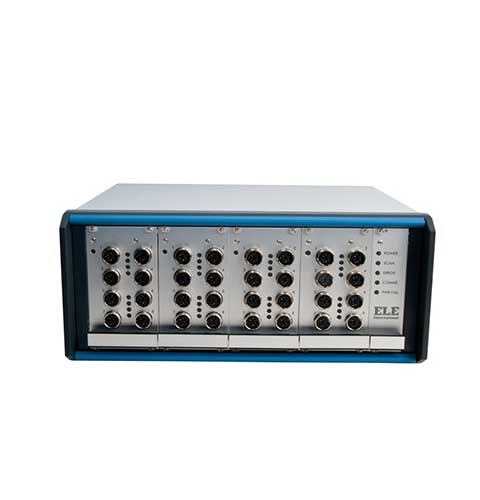

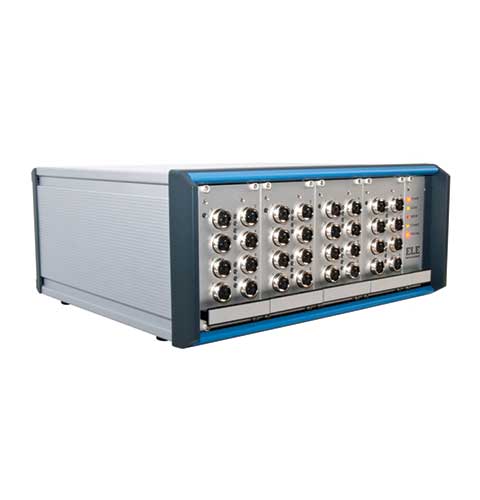

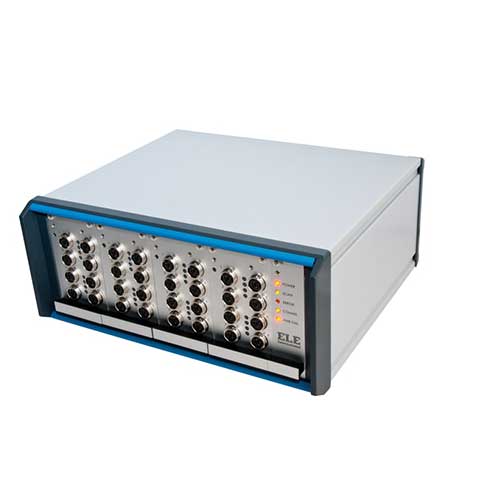

The GDU is a stand-alone, multi-tasking, multi-channel data logger, that is reliable and powerful, enabling it to co-ordinate test data from the range of ELE transducers required for various test methods.

The ELE Geotechnical Software package (DS7.1 and following), in conjunction with the GDU and a range of transducers, are the two central components required to create a modern turnkey soil testing system. Being fully modular it can be adapted to a wide range of soil testing laboratory configurations.

• For performing CBR, Consolidation, Direct/Residual Shear and Total & Effective Stress Triaxial tests
• 8 Channels expandable to 32 for performing multiple, concurrent tests for cost savings
• Independent signal conditioning on each channel to maintain data accuracy
• Field-upgradeable software, meaning no downtime for future software and functionality upgrades
• PC link via RS232 (DS7.1 only), or RS232 and Ethernet P2P/LAN (with DS7.2 and following)

• Extended warranty

Voltage Supply 100-120 V 60 Hz
Description GDU 8 channel data acquisition unit
Transducer Supply 10vDC.



Specifications

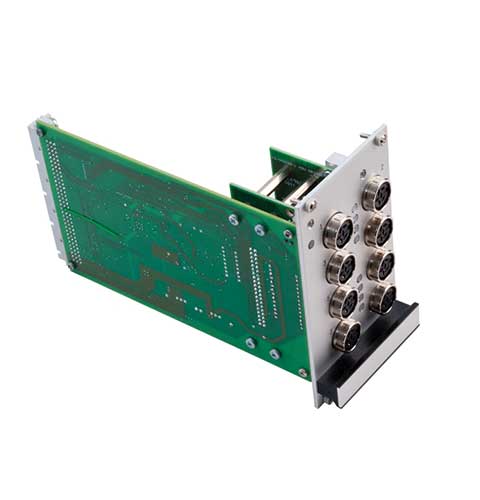

Case Aluminum, free standing; houses power supply, analogue to digital conversion module and an 8-channel analogue input module with transducer energization.
Sockets Standard 5-pin DIN type.
Input Range ± 5 volts to ± 10 mV full scale.
Transducer Supply 10vDC.
Dimensions 12.8” w. x 14.3” d. x 6.1” h. (325 x 363 x 155 mm).
Weight Net 14.08 lbs. (6.4 kg).

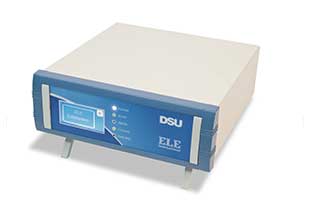

DSU Electronic Readout and Control System 110 V AC 60 Hz
