DSU Electronic Readout and Control System 110 V AC 60 Hz

27-1300/02

Category:

Data Logging, Software and Electronic Instrumentation, Design and Testing of Bituminous Mixtures, Asphalt

Sub Category:

Marshall Stability and Flow, Design and Testing of Bituminous Mixtures, Marshall Stability and Flow

Product Group:

Data Logging with the DSU, Electronic Instrumentation, Electronic Instrumentation, Electronic Instrumentation

· Download the full brochure here

· Download the full DS7.2 geotechnical software brochure here

· 4 channel automatic control and data-logging unit

· Automatic, dual-frame control

· Performs CBR, Marshall, Unconfined Compression, Direct and Residual Shear, One-Dimensional Consolidation and Unconsolidated Undrained tests

· LAN connection – software can be running anywhere on your server

· Never lose data from power fails – 2 gigabytes of non-volatile memory

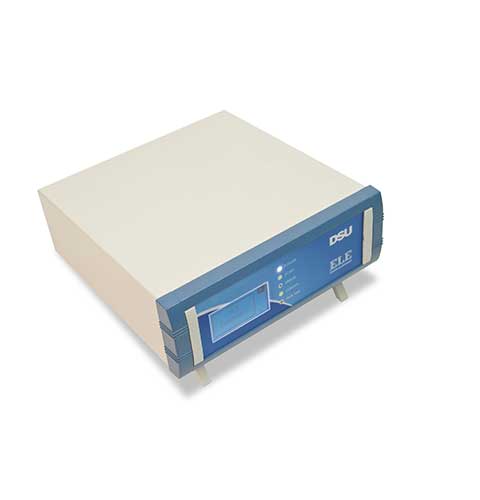

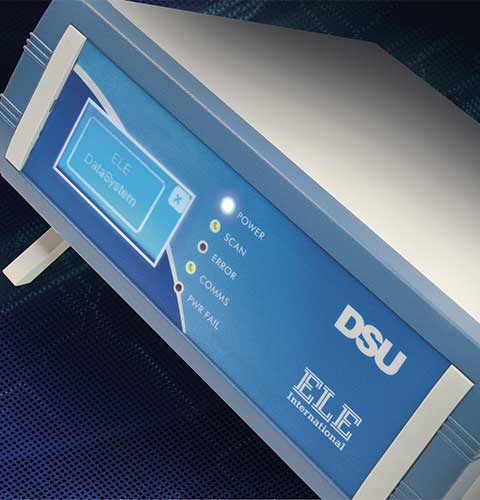

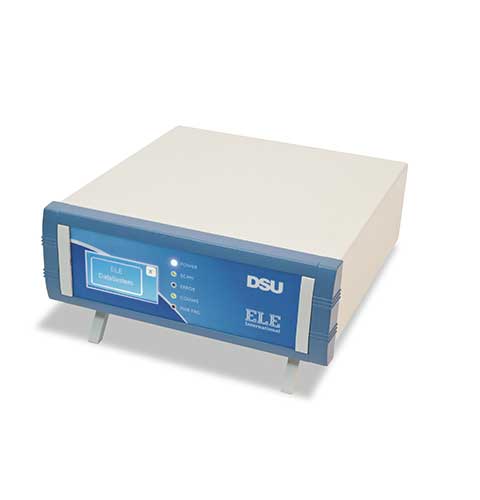

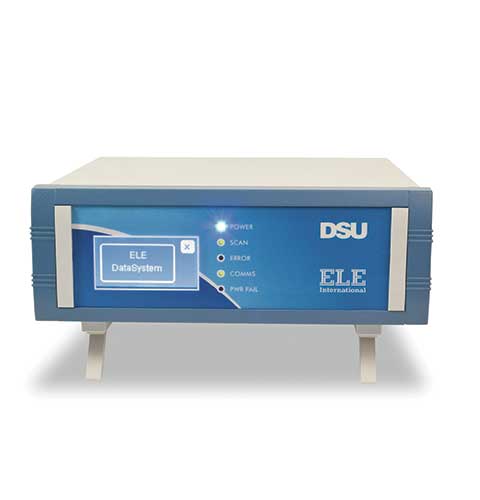

The Data System Unit (DSU) is a versatile instrument designed to accommodate the general logging requirements of geotechnical and materials testing engineers. It's intelligent interface allows the user to work with a range of different sensors.

The DSU has two distinct modes of operation. The first is referred to as DS mode (DataSystem) for operation with ELE International's established DS7 geotechnical testing software.

DS Mode

  • Up to four one dimensional consolidation tests
  • Up to two CBR tests
  • One direct/residual shear test
  • One triaxial quick un-drained test

DU Mode

  • Up to two Marshall tests
  • Up to two CBR tests
  • Up to two Unconfined compression tests
  • Automatic frame control

Overview

  • Touch Screen data entry for standalone operation, Marshall/CBR/Quick un-drained
  • Automatic single and dual frame control (with multiplex 50 frame)
  • Log memory of 2 gigabytes
  • Non-volatile memory

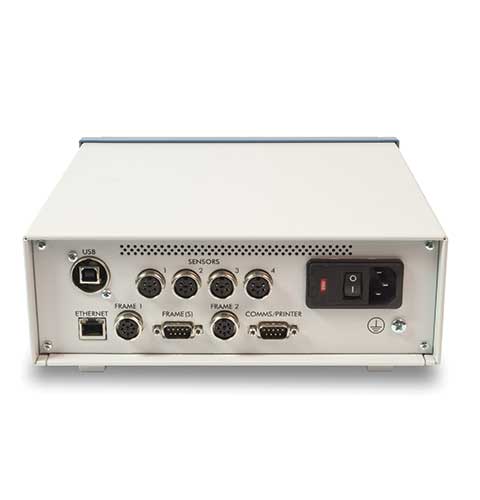

  • Ethernet TCPIP link and serial comms support
  • Market leading signal stability
  • Certificate and manual calibration features



Become a member of the ELE International web site, add this new product to a wishlist to receive a quote! Click here

This product is now available in the USA and Canada!

Description DSU
Voltage Supply 100-120 V 60 Hz

Cable, Safety/ID

27-1300/11

This is required for every CBR Test 50, Marshall Test 50 and Multplex 50 load frame that you wish to control. Please note, one of these is included with the DSU as standard. An additional will be required if you wish to connect to a second frame.

Dual Frame Comms Cable

27-1300/10

This item is required if you wish to control two Multiplex 50 frames for CBR and Marshall tests
