Pendulum Skid Resistance Tester



Mechanical Properties

Sub Category:


Product Group:

Skid Resistance Testing

The Pendulum Skid Resistance Tester was originally designed in the 1940s in the USA and further developed in the 1960s at the TRL (Transport Research Laboratory) for the testing of road surfaces.

The device measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the surface to be tested. This provides road engineers with a method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and in situ.

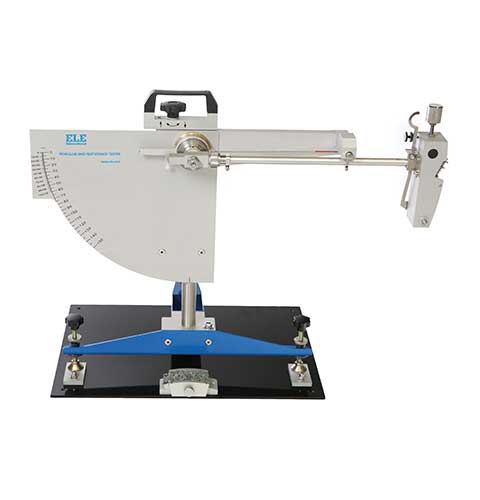

It operates by a pendulum rotating about a spindle which is attached to a vertical pillar. At the end of the tubular arm, a head of known mass is fitted with a rubber slider. The pendulum is released from a horizontal position so that it strikes the sample surface at a constant speed. The distance travelled by the head after hitting the sample is determined by the friction of the sample surface.


  • Assessment of surface friction and skid resistance properties
  • Testing of aggregates in the PSV (Polished Stone Value) test
  • Testing of new road surface materials
  • Testing of pedestrian pavements
  • RTA (road traffic accidents)
  • Litigation investigations


  • Designed for lab and on site road surface testing
  • Factory calibrated to EN1097-8
  • Low friction arm, and lightweight pointer
  • Supplied with ‘F’ scale for use with small slider set for 76mm slide length (PSV test)
  • Highly repeatable

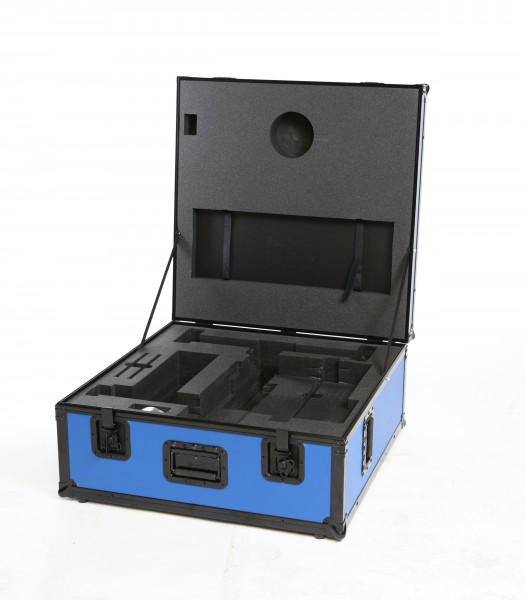

  • Supplied with carrying case
Description Pendulum Skid Resistance Tester
EN 1097-8:2009 Yes
EN 1436:1997 Yes
EN 13036-4:2003 Yes
ASTM E303-93 Yes
BS 812 Pt 114 Yes
BS 6077 Pt 1 Yes
BS 7044 Yes
BS 7188 Yes
BS 8204 Yes
BS 7976 Yes
Dimensions (WxDxH) 695 x 295 x 695 mm
Volume 0.15m3
Weight 30 kg
