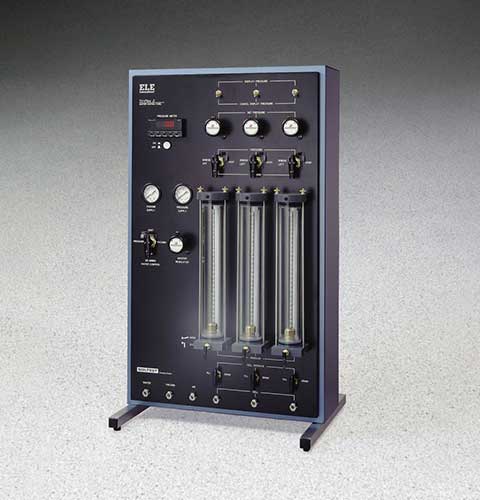

Tri-Flex 2 Master Control Panel, English 110vAC

« return

Tri-Flex 2 Master Control Panel, English 110vAC

25-0696/02

Category:

Soils

Sub Category:

Soil Strength (Triaxial), Pressure Systems

Product Group:

Tri-Flex 2 Master Control Panel

110vAC, 50/60 Hz, 1ø.

Utilities Required Water, vacuum, air pressure, drain and AC power supply.
ASTM D2850 Yes
ASTM D4767 Yes
ASTM D7181 Yes
ASTM D5084 Yes
AASHTO T296 Yes
AASHTO T297 Yes
Description Tri-Flex 2 Master Control Panel, English 110vAC



Specifications

Measurement Range 10-4 to 10-10 cm/sec.
Master Regulator 2 to 150 psi (14 -1,034 kPa), dual scale.
Master Pressure Gauge 2 to 160 psi (14 -1,103 kPa), dual scale.
Master Vacuum Gauge 0 to -30 inches of Hg (0-100 kPa), dual scale.
Digital Pressure Meter English: 2 to 15 0 psi range; ± 0.1 psi; ± 0.25 % accuracy full scale.
Metric: 14 to 1,034 kPa range; ± 1 kPa; ±
0.25 % accuracy full scale.
Burette Pressure Regulators Three; 2 to 15 0 psi (14 -1,034 kPa).
Burette/Annulus Three; 25 /400 ml capacity with 0.1 ml burette
graduations.
Utilities Required Water, vacuum, Dry air pressure, drain and AC power supply.
Dimensions 21 ” w. x 36-3/4” h. x 7” d. (17” d. with legs); (533 x 933 x 178 mm).
Weight Net 50 lbs. (22 .7 kg).



Auxiliary Control Panel

25-0699

For two additional triaxial cells

High Vacuum Pump

88-3110/02

115vAC, 50/60 Hz, 1ø.

Pressure Interface Chamber

25-0695

Stainless steel lower chamber and base construction with Viton diaphragm and O-rings.  Supplied with all necessary valves and tubing.  The Pressure Interface Chamber (PIC) is used during permeability test application involving toxic permeants. The chambers provide a closed system for toxic liquids entering and exiting the test cell.  Weight: 5.5…
