2000 kN Load Calibration Device complete with Hand held Readout Unit & Cal Cert UKAS Traceable

« return

2000 kN Load Calibration Device complete with Hand held Readout Unit & Cal Cert UKAS Traceable

37-8320

Category:

Compression Machines Accessories

Sub Category:

N/A

Product Group:

Calibration Devices

Upon receipt, customer may calibrate to NIST or other standard.

  • Capacities 2 tonnes to 1000 tonnes
  • <±0.1% Accuracy
  • Sealed to IP65
  • Robust Construction
  • Submersible Version Available
  • Competitively Priced

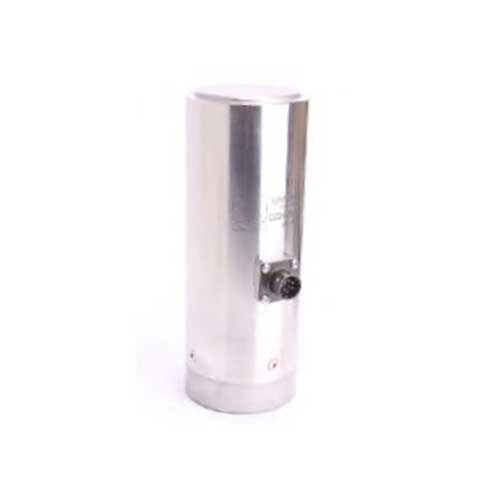

The 0.1% accuracy series of column compression load cells are designed for use as reference standards for the calibration of other load cells or in high capacity weighing applications, where precise measurement and high accuracy is of utmost performance. Their simple column design and sealed construction assures excellent resistance in the most arduous conditions.

Applications: Reference standards, high capacity weighing applications, silo weighing, pile force measurement, heavy duty jack levelling systems, press calibration, centre of gravity (CoG) measurement systems and high capacity multi-point weighing systems.

Description 2000 kN Load Calibration Device complete with Hand held Readout Unit & Cal Cert UKAS Traceable
Capacity  200 tonnes
Output  2.0m V/V (nominal)
Total accuracy  <+/- 0.1% of rated output
Environmental protection  IP65
Electrical connection  4m PUR cable
Operating temperature range -20 to +70 deg C
Compensated temperature range  -10 to +50 deg C
Supply voltage  10v recommended 15v max
Operating mode  Compression

Handheld Digital Display

37-8315/10

ry low, peak, trough, net & shunt calibration indicator Input: 5mV/V (50mV/V optional) Environmental protection: IP65 2 ranges/ engineering units Optional RS232 series data output Integrated TEDS (IEEE1451, template 33) Powered by 2 x AA batteries Compatible with most strain gauge based transducers Up to 25Hz display rate  450 hours battery life low power mode with 350ohm bridge connected auto sleep facility  ex-stock availability  3 year warranty     The 37-8315/10 handheld display is a completely portable high precision instrument designed to work with all types load cells and strain gauge based transducers. The 7-digit LCD display makes it suitable for any monitoring application from general industrial up to high accuracy reference standards. The 37-8315/10 comes packaged in a compact and enclosure which weighs only 260 grams and is powered by 2x ‘AA’ batteries that provide up to 450 hours of continuous operation in low power mode with a 350Ω load cell or strain gauge bridge connected. For simplified use, the operator only has access to six keys; on/off, gross/net, peak, trough, hold and shunt cal. Calibration and configuration can be performed from the front panel, with protection against accidental or un-intentional changes. The configuration menu is very simple and enables the setting of a tare value, display resolution, filter rate, auto power off and selection of low power mode. There are 3 calibration options; a single pass auto-calibration, entering of load cell sensitivity and corresponding display value and entering of offset and gain values for corresponding display values. The display also offers TEDS (Transducer Electronic Data Sheet) functionality allowing automatic calibration with any compatible sensor to which it is connected. The 37-8315/10 has a dual range facility allowing for calibration in two different engineering units, i.e. lbs/kg, tonne/kN which offers the engineer the ability to tailor the instruments response to the application.

2000 kN Load Calibration Device complete with Handheld Readout Unit & Calibration Certificate ISO376

37-8315

Complete with Hand Held Readout Unit and UKAS calibration certificate.  Capacities 2 tonnes to 1000 tonnes <±0.1% Accuracy Sealed to IP65 Robust Construction Submersible Version Available Competitively Priced The 0.1% accuracy series of column compression load cells are designed for use as reference standards for the calibration of other load cells or in high capacity weighing applications, where precise measurement and high accuracy is of utmost performance. Their simple column design and sealed construction assures excellent resistance in the most arduous conditions. Applications: Reference standards, high capacity weighing applications, silo weighing, pile force measurement, heavy duty jack levelling systems, press calibration, centre of gravity (CoG) measurement systems and high capacity multi-point weighing systems.

3000 kN Load Calibration Device Complete with Hand Held Readout Unit & Cal Cert to UKAS traceable

37-8400/10

Complete with Hand Held Readout Unit and traceable certificate (not calibrated to UKAS standards). Upon receipt, customer may calibrate to NIST or other standard.

3000 kN Load Calibration Device Complete with Hand Held Readout Unit ISO376

37-8400

Complete with Hand Held Readout Unit and UKAS calibration certificate.  This Load Cell is supplied with rechargeable batteries and universal charger.
