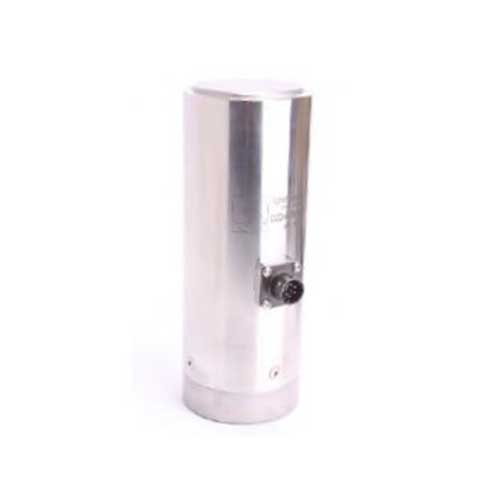

2000 kN Load Calibration Device complete with Handheld Readout Unit & Calibration Certificate ISO376

« return

2000 kN Load Calibration Device complete with Handheld Readout Unit & Calibration Certificate ISO376

37-8315

Category:

Compression Machines Accessories

Sub Category:

N/A

Product Group:

Calibration Devices

Complete with Hand Held Readout Unit and UKAS calibration certificate.

  • Capacities 2 tonnes to 1000 tonnes
  • <±0.1% Accuracy
  • Sealed to IP65
  • Robust Construction
  • Submersible Version Available
  • Competitively Priced

The 0.1% accuracy series of column compression load cells are designed for use as reference standards for the calibration of other load cells or in high capacity weighing applications, where precise measurement and high accuracy is of utmost performance. Their simple column design and sealed construction assures excellent resistance in the most arduous conditions.

Applications: Reference standards, high capacity weighing applications, silo weighing, pile force measurement, heavy duty jack levelling systems, press calibration, centre of gravity (CoG) measurement systems and high capacity multi-point weighing systems.

Log in

You must log in to your ELE account to view prices and place your order.

**Not available for sale in the USA**

110 – 240 V, AC 50 – 60 Hz, 1 ph.

Description 2000 kN Load Calibration Device complete with Handheld Readout Unit & Calibration Certificate ISO376
Capacity  200 tonnes
Output  2.0m V/V (nominal)
Total accuracy  <+/- 0.1% of rated output
Environmental protection  IP65
Electrical connection  4m PUR cable
Operating temperature range -20 to +70 deg C
Compensated temperature range  -10 to +50 deg C
Supply voltage  10v recommended 15v max
Operating mode  Compression

Handheld Digital Display

37-8315/10

7 digit LCD display (+/-9999990)  With battery low, peak, trough, net & shunt calibration indicator Input: 5mV/V (50mV/V optional) Environmental protection: IP65 2 ranges/ engineering units Optional RS232 series data output Integrated TEDS (IEEE1451, template 33) Powered by 2 x AA batteries Compatible with most strain gauge based transducers Up to…

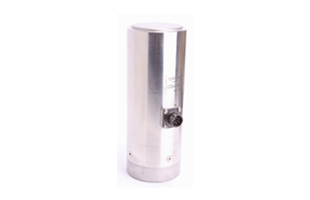

2000 kN Load Calibration Device complete with Hand held Readout Unit & Cal Cert UKAS Traceable

37-8320

Upon receipt, customer may calibrate to NIST or other standard. Capacities 2 tonnes to 1000 tonnes <±0.1% Accuracy Sealed to IP65 Robust Construction Submersible Version Available Competitively Priced The 0.1% accuracy series of column compression load cells are designed for use as reference standards for the calibration of other load…

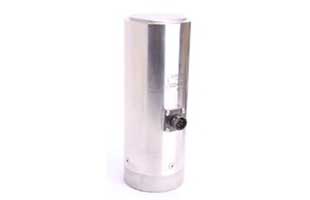

3000 kN Load Calibration Device Complete with Hand Held Readout Unit & Cal Cert to UKAS traceable

37-8400/10

Complete with Hand Held Readout Unit and traceable certificate (not calibrated to UKAS standards). Upon receipt, customer may calibrate to NIST or other standard.

3000 kN Load Calibration Device Complete with Hand Held Readout Unit ISO376

37-8400

Complete with Hand Held Readout Unit and UKAS calibration certificate.  This Load Cell is supplied with rechargeable batteries and universal charger.
