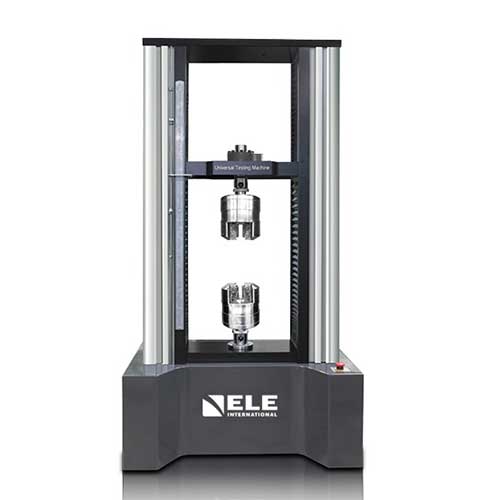

Electronic Type Universal Testing Machine 3000 kgf (30kN)

36-2417/05

Category:

Universal Testing Machines

Sub Category:

N/A

Product Group:

Electronic Type Universal Testing Machines

36-2417/05 is designed to serve the requirements of laboratories, research and development, quality control, manufacturers and educational fields. Hard plastics, metals, composites, wood, rope etc are ideal specimens for 36-2417/05. Tests methods such as tensile, compression, bending, peel, shear, puncture etc are available.

Features:

  • Dual column electro mechanical floor standing model
  • High precision load cell, class 1 and class 0.5 calibration
  • 1/50,000 force resolution
  • 0.05~500mm/min
  • Up to 4 step division of force capacity for more detailed reading
  • Overload protection limit sensor, non-contact extension limit sensor
  • Emergency power cut off button

Software features:

  • Close loop. Control of load, displacement, extension, stress and strain
  • Remote control via software, text execution, data analysis available through RS-232 port
  • Software updates and modification installation available via email or remote support
  • Diverse and robust configurations for automatic test end options, graph options, PID values, crosshead movement speeds etc
  • 15+ different Testing Methods including cyclic, creep, relaxation, keeping etc
  • View data and graphs of previously ran tests
  • Determine and analyze data points such as yield point, breaking point, modulous etc
  • Test report printing options include direct to printer or excel file export
  • Test report data can be configured to show only necessary data and to exclude unused data
  • Raw data analysis for detailed test data
  • Exportable to excel and customizable to show user required data
Description Electronic Type Universal Testing Machine 3000 kgf (30kN)
Frame Capacity 3000 kgf (30kN)
Max tension range  3000 kgf (30kN)
Force resolution  1/50,000
Stroke resolution  0.001 mm
Load range  2 steps (3000N/ 300N)
Colum style Dual
Controller  LCD Digital Indicator
Total weight  600 kg
Dimensions (w x d x h) 950 x 700 x 1900 mm
