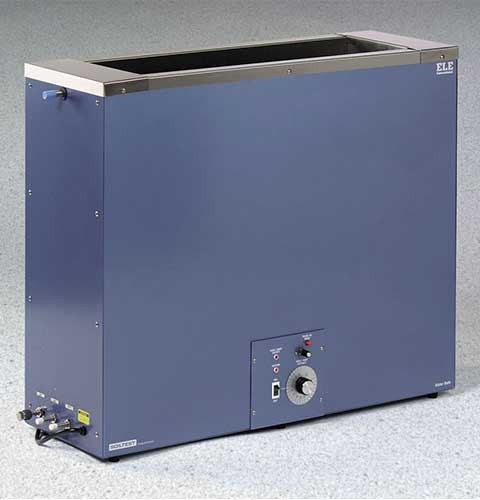

Hydrometer Jar Bath 220vAC

24-4867/01

Category:

Soils

Sub Category:

Particle Size Distribution

Product Group:

Hydrometer Jar Bath

220vAC, 50/60 Hz, 1ø.
Plumbing Ports Overflow; Drain; Inflow and outflow for cooling
system.
ASTM D422 Yes
AASHTO T88 Yes
Description Hydrometer Jar Bath 220vAC

Specifications

Capacity8 hydrometer jars.
ConstructionStainless steel tank; enamel finish exterior.
Jar SupportStainless steel grid.
Temperature RangeAmbient to 60°C (14 0°F).
Sensitivity±0.2°C at 20°C (68°F).
Circulating SystemDrive pump with motor.
Heating SystemImmersion type; 700 watt heater in stainless steel
mixing chamber.
Plumbing PortsOverflow; Drain; Inflow and outflow for cooling
system.
Inside Dimensions37” w x 8” d x 16” h (939 x 203 x406 mm)
Outside Dimensions48 ” w x 11 ” d x 19” h (1,219 x 279 x 483 mm)
WeightNet 90 lbs. (41 kg).
