• 1560 kN/350 000 lbf and 2000 kN/450 000 lbf capacity
• Tests 150 and 100 mm cubes, or cylinders up to 320 x 160 mm diameter
• ADR Touch Digital readout in kN/lbf/kgf
• Supplied with Windows® download software as standard
• Calibration accuracy to BS EN ISO 7500-1; ASTM E4;
• Efficient hydraulic power packs
• Economic machines ideal for site use

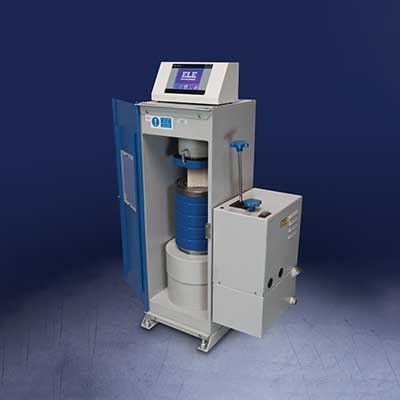

ADR Touch SOLO 1500 Compression Machine with Digital Readout.

• 1560 kN/350 000 lbf capacity
• Calibration accuracy to BS EN ISO 7500-1; ASTM E4;
• Efficient hydraulic power packs
• Economic machines ideal for site use

The Compact 1500 range of compression machines has been designed to meet the need for a simple, economic and reliable means of testing concrete.

Specimen Capacity
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes 150 or 100 mm square. Kerbs and flagstones may also be tested on the ADR machine as well as 150 mm and 100 mm square section beams to ASTM C78, using the optional 100 kN flexural frames which are connected to the power pack.

Load Indication
The ADR digital readout is a microprocessor controlled instrument, which is fitted as standard to all digital machines in the range. Load can be displayed in kN, lbf or kgf as selected by the operator.

info »
36-0720/01

ADR Touch SOLO 2000 Semi-Automatic Compression Machine with Digital Readout.

  • 2000 kN/450 000 lbf capacity
  • Tests 150 and 100 mm concrete cubes or cylinders up to 320 x 160 mm diameter
  • Incorporates an ADR touch digital readout with rugged electrically driven hydraulic power pack with manual pace control as standard.
  • High stability welded construction steel frame.
  • Fitted with front and rear gates for operator protection.
  • Maximum vertical clearance between upper & lower platen 340mm  and horizontal distance is 325 mm
  • Supplied with 222 mm dia removable lower platen marked for centering of cube and cylinder specimens.



Incorporating the ADR Touch digital readout, the machines are designed to test cubes and cylinders in accordance with most International Standards. Supplied fitted for cylinder testing with safety gates. When used for cube testing appropriate distance pieces according to the size of specimen to be tested are required and must be ordered separately.



info »
36-3090/01
