Automatic Compression Machines

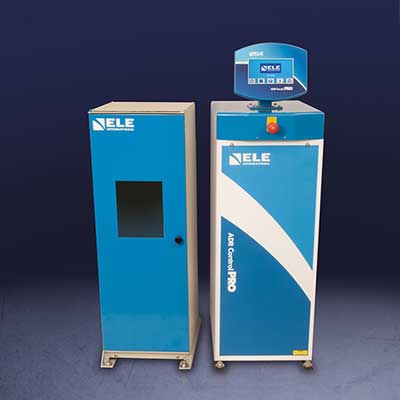

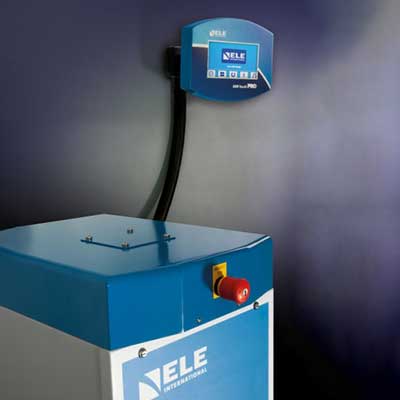

The ADR Touch Control Pro will deliver all the features and quality of the established ADR-Auto range, with its 20 year history, but with a new sleek design and additional capabilities. The console assembly consists of an ADR Touch Control Pro and power base which can be used with all existing concrete and cement frames.

The machines meet the requirements of EN 12390-3, 4, 5, 12504-1, 1354, 1521, 3161, 1338, 772-6, 13286-41, BS 3892-3, 187, 6717

• Machines to meet the requirements of EN 12390-3, -4, -5, 12504-1, 1354, 1521, 3161, 1338, 772-6, 13286-41 BS 3892-3, 187, 6717
• Calibration accuracy to BS EN ISO 7500-1; ASTM E4
• Wide range of accessories

Model No. EN 12390-6 Voltage Capacity, kN Ram Travel
36-5150/01 Yes 220-240 V 50 Hz 2000 50
36-5150/06 Yes 220-240 V 60 Hz 2000 50
36-5165/01 Yes 220-240 V 50Hz 3000 50
36-5165/06 Yes 220-240 V 60 Hz 3000 50

• Tests 150 and 100 mm cubes and cylinders up to 320 x 160 mm diameter
• Supplied with Windows download software as standard

Model No. Voltage Capacity, kN Ram Travel
36-5125/01 220-240 V 50 Hz 2000 50
36-5125/02 100-120 V 60 Hz 2000 50
36-5125/06 220-240 V 60 Hz 2000 50

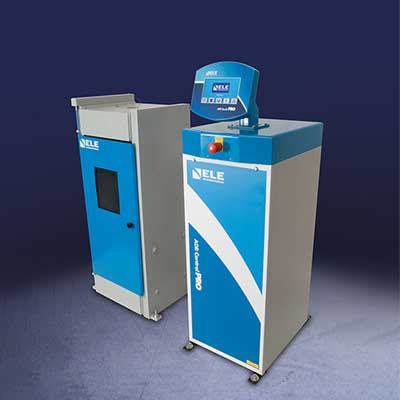

These Compression Machines come with a standard frame (2000 BS or 2000), which has an additional sensor attached, allowing you to test high strength concrete samples and low strength cement samples.

Model No. Voltage Desc Capacity, kN
36-4131/01 220-240 V 50 Hz Dual sensor (low and high strength) 2000
36-5151/01 220-240 V 50 Hz Dual sensor (low and high strength) BS EN 2000
36-5151/06 220-240 V 60 Hz Dual sensor (low and high strength) BS EN 2000
36-4131/06 220-240 V 60 Hz Dual sensor (low and high strength) 2000
39-7120 - 250 kN Compression Jig Upgrade Kit -

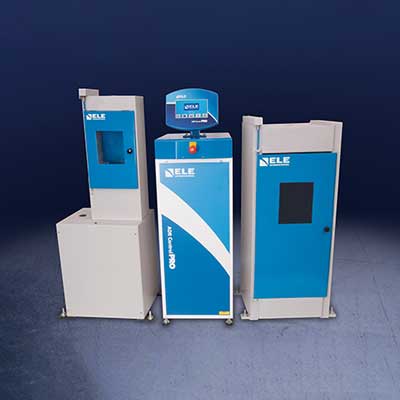

Designed to provide comprehensive test facilities, dual-frame compressions enable a versatile testing programme. Controlled by a single console, dual-frame compression machines provide an economic means of testing the full range of concrete, mortar and cement samples

Model No. EN 12390-6 EN 196-1 Frame 1 Frame 2 Voltage
36-5155/01 - Yes 2000 kN 250 kN 220-240 V 50 Hz
36-5155/06 - Yes 2000 kN 250 kN 220-240 V 60 Hz
36-5170/01 Yes Yes 3000 kN 250 kN 220-240 V 50 Hz
36-5170/06 Yes Yes 3000 kN 250 kN 220-240 V 60Hz
