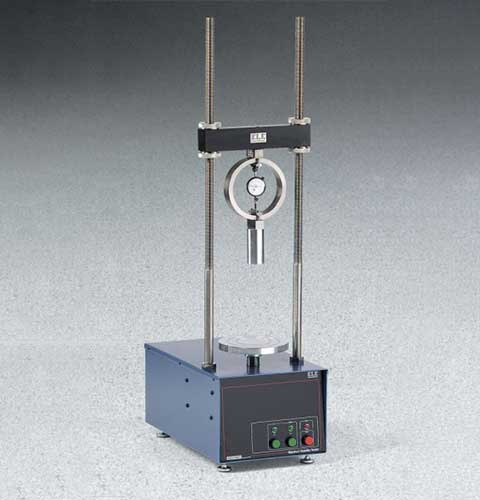

Marshall Stability Tester

45-6829/06

Category:

Asphalt

Sub Category:

Design and Testing of Bituminous Mixtures, Marshall Stability and Flow

Product Group:

Marshall Stability Tester

Compact size takes up little counter space in the lab.
Push-button operation controls movement of load screw. Indicator lights show when unit is running and when test limit or maximum travel is reached.

The Marshall Stability Tester quickly and accurately measures the resistance to plastic flow of bituminous mixtures, in accordance with ASTM D-6927 and AASHTO T-245 testing standards.

With operator convenience in mind, the machine features push-button operation with indicator lights to show when the unit is in operation and when the platen has reached its limit or point of maximum travel.

220 V, 60 Hz, 1Ph

Description Marshall Stability Tester



Specifications

Frame Capacity 10,000 lbf. (44 .5 kN) maximum.
Proving Ring up to 10,000 lbf. (sold separately)
Controls Push-button up/down/stop with running and
limit indicator lights.
Motor 3/4 h.p., reversible.
Speed 2” (50.8 mm) per minute.
Travel 2.5” (64 mm) maximum.
Clearances 10” (254 mm) between uprights, 7-1/2” (191
mm) between platen and load piston.
Overall Dimensions 14 ” w. x 23 ” d. x 40” h.
(35 6 x 584 x 1,016 mm).
Housing 14 ” w. x 23 ” d. x 11 ” h.
(35 6 x 584 x 279 mm).
Weight Net 189 lbs. (86 kg); Shpg. 236 lbs. (107 kg).



Marshall Test System Set

5002/06

Set includes: 1 - Marshall Stability Tester (45-6829/06).1 - Asphalt Flow Indicator (45-6892). 1 - 4" Marshall Breaking Head (45-6855).  1 - Asphalt Sample Ejector (45-6480).  1 - Bottom Rack (45-6475/12). 1 - Water Bath- Roaster Oven 115V (45-6475/10). 1 - 10cm (3.93") Dia Filter Paper pk/100 (45-6462). 1 -…
