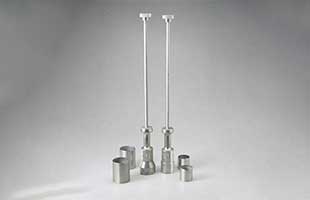

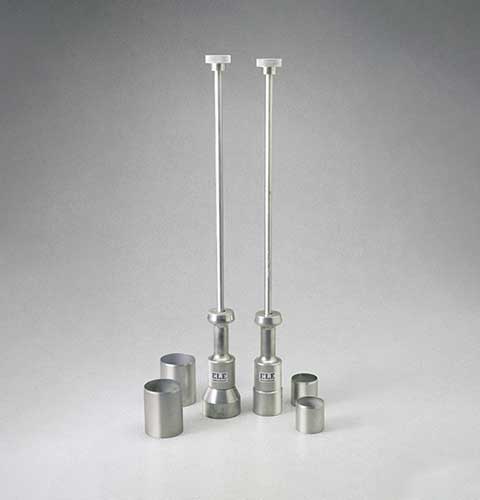

3" Density Drive Sampler

29-5450

Category:

Soils

Sub Category:

Soil Index Properties, Density

Product Group:

Density Drive Samplers

with 3" (76.2 mm) drive head.

Tray Dimensions, ” 3 x 2.75
ASTM D2937 Yes
Description 3″ Density Drive Sampler



Specifications

Drive Head 3” (76.2 mm) diam.
Hammer Assembly Plated steel construction with internal shock spring.
Tube Dimensions 3” (76.2 mm) diam. x 2.75” (69.8 mm) l.
Weights Net 22 lbs. (9.9 kg).

Density Tubes are not included with Drive Samplers; order separately

3" Density Tube

29-5450/10

3" (76.2 mm). 0.01 cu. Ft capacity.

4" Density Drive Sampler

29-5455

with 4" (101.6 mm) drive head.
