Compact Core Drill

47-6175

Category:

Core Drilling

Sub Category:

N/A

Product Group:

Compact Core Drill Machine

EN 12697-27

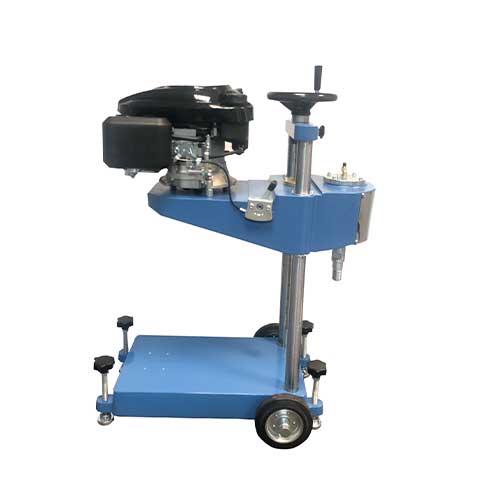

Machine is designed to cut cores up to 150 mm diameter from concrete, asphalt and similar hard construction materials. It comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 Hp petrol engine, a ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.

Coring bits are available to order separately

Description Compact Core Drill
Dimensions  500 x 900 x 1100 mm
 Weight  95 kg
 Power  6.5 Hp
