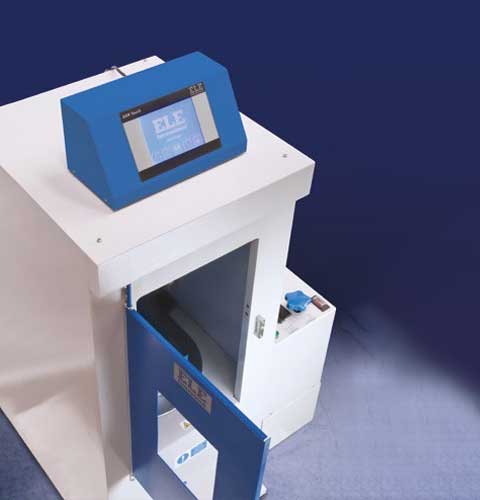

ADR Touch SOLO 3000 BS EN Compression Machine with Digital Readout and Self Centring Platens.

« return

ADR Touch SOLO 3000 BS EN Compression Machine with Digital Readout and Self Centring Platens.



Compression Machines

Sub Category:

Manually-Operated Compression Machines

Product Group:

BS EN Compression Machines

The ADR Touch range of 2000 kN and 3000 kN capacity compression machines has been designed to meet the need for reliable and consistent testing. The load frame is a welded steel fabrication carrying the ball-seated upper platen. Positively located on the loading ram, which is protected from debris by a flexible cover, the lower platen is marked for the centring of cube and cylinder specimens. Self-centring lower platens for cube location are supplied as standard on EN machines and are available as an optional extra on the standard machine. The two machines for cube testing to EN standards are
assembled and aligned using a special compression frame stability tester.

The dimensions of the frame allow the testing of concrete cylinders up to 320 mm long x 160 mm diameter, 150 and 100 mm square cubes, and on EN/BS machines, 200 mm square cubes. Kerbs and flagstones may also be tested on ADR machines as well as 150 mm and 100 mm square section beams to ASTM C78 using the optional 100 kN flexural frames which are connected to the power pack.

**Not available for sale in the USA**

ADR Touch BS EN 2000 and 3000 kN compression machines are supplied complete with self-centring lower platen and safety gates fitted with interlock switches ready for testing 300 x 150 mm diameter cylinders.

Whilst delivering all the features and reputation of the established ADR Series with its extensive design history, the new and improved user interface provides a high quality platform for testing that enhances the performance of ELE’s compression machines.
New, sophisticated electronics further the benefits of simplified operation, whilst delivering the highest levels of accuracy in testing concrete and cement/mortar samples, satisfying the needs of Quality Control Managers, Lab Managers and Technicians.

Accuracy & Savings
The new ADR Touch Series, with 145mm (5.7”) high resolution QVGA touch screen interface and intuitive menu-driven operation, reduces the time taken to set up the machine and perform tests, reducing the time to train staff by up to 25%.

• Up to 6 sample types can be set as favorites, enabling one-touch set up for repeat testing.
• Full, QWERTY touch pad for input of test data.

Most testing errors produce lower strength results. Noncompliant loading rates can generate errors in measured strength. The user interface includes real-time display of load vs. time, further ensuring accurate and consistent test results and providing “goodness of test” data to improve traceability in your QC operations.

Traceability & Data Quality
The ADR range now provides improved data quality and traceability in due diligence cases – it is now possible to demonstrate traceability all the way from the machine/user to the accreditation body, increasing your reputation and peace of mind – all test results now come complete with the machine serial number attached.

• Enhanced USB data communications between PC and machine – eliminating the need for download software.
• Two gigabytes of storage memory.
• Full customization of sample sizes – stress calculations are automatically recalculated.

User Safety
With full safety gates as standard, total systems diagnostics, ram run-out switches and overload warnings ensure the
safety of your employees and the reliability of your machine.

EN 12350-6 Yes
Voltage Supply 220-240 V 50/60 Hz
Force Capacity, kN 3000
Maximum Ram Travel mm 50 mm
NF P18-411 Yes



Testing Standards BS EN 12390-4, BS EN 12390-3, BS EN 12390-4, BS EN 12390-5, EN 12504-1, EN 1354, EN 1521, EN 3161, EN 1338, EN 772-6, EN 13286-41, BS 3892-3, BS 187, BS 6717, BS EN ISO 7500-1, ASTM E4
Capacity 3000 kN
Cubes (Concrete) Up to 200 mm
Cylinders (Concrete) Up to 160 x 320 mm
Blocks Via optional Platen Handling System
Flexural Testing Via Flexural Frame
TFV and ACV Yes
Voltage Supply 220-240V 50/60 Hz 1Ph.
Frame Class (Stability) Tested
Frame Type Welded
Max vert. Clearance 340 mm
Max hor. Clearance 310 mm
Platen Sizes Lower 220mm sq,
Upper 300mm dia
Max Ram Travel 50 mm

100kN Flexural Fitting Kit (ADR) Used for Connecting Flexural Frames to ADR Compression Machines.


These flexural frames can be used with a wide range of ELE compression machines. Simply select one of two fitting kits designed to link the flexural frame to either the ADR-Auto range of compression machines or any other ADR compression machine.

3000 kN Load Calibration Device Complete with Hand Held Readout Unit ISO376


Complete with Hand Held Readout Unit and UKAS calibration certificate.  This Load Cell is supplied with rechargeable batteries and universal charger.

BS/EN Standard Rectangular Platen


Manufactured to the requirements of BS 6073-1 and EN 772-1 these platens, measuring 445 x 250 x 75 mm thick, are suitable for testing a wide range of samples. The upper platen is clipped to the machine’s standard ball seating assembly. The platens are supplied complete with 2 bolt-on spacers…

Impact Printer Rs232 Serial Connection. Supplied Complete with 1 Paper Roll.


Supplied complete with serial RS232 communications cable and one paper roll.
