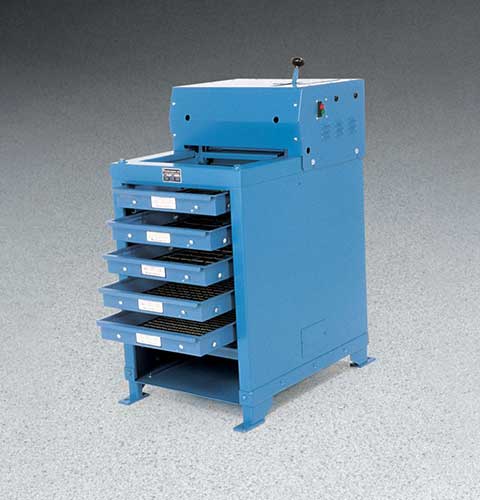

Aggregate Screen Shaker - Hydraulic Operation 230vAC

Specification

• Capacity: 1 cu. ft. (0.03 m3).
• Motor: Capacitor-type; 1/3 h.p. with overload protection.
• Tray Dimensions: Screen Area: 14 -3/4” x 22 -3/4” (375 x 578 mm).Overall: 18” x 26” (45 7 x 660 mm).
• Trays: Steel wire cloth; five included: 2”, 1-1/2”, 1”, 3/4”,1/2” plus dustpan tray.
• Overall Dimensions: 23” w. x 31” d. x 43” h. (584 x 787 x 1,092 mm).
• Weight: Shpg. 500 lbs. (22 7 kg).
