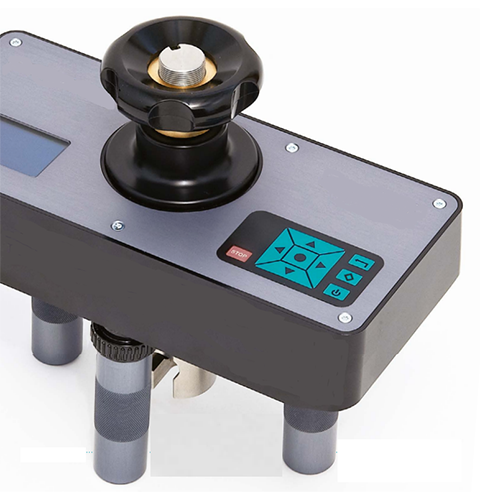

Automated Pull-Off Adhesion Tester

35-2310

Category:

Non-Destructive Testing of Hardened Concrete, Concrete

Sub Category:

Fresh and Hardened Concrete Testing, Non-Destructive Testing of Hardened Concrete

Product Group:

Pull-off testing, Pull-off testing

The quality of concrete repairs is determined by the adhesive strength between the repair material and the substrate. Pull-off testing is the most widely used test method to assess bond strength.

Maximum pulling force of 16 kN (3597 lbf)

Mid-range instrument suitable for most pull-off testing applications.

Calibration accuracy EN ISO 7500-1 Class 1.

Comprehensive range of test discs plus adjustable foot configuration to cover a wide range of applications.

Simple programming of key parameters and fully automated test.

Applications for the 35-2310 pull-off tester include: adhesive strength of mortars and renders, adhesive strength of asphalt, adhesive strength of tiles, bond strength of coatings and overlays, bond strength of repair and materials such as FRP, tensile strength in concrete renovation.

Complies to EN ISO 4624, EN 1015-12, EN 1542, EN 1348, EN 13963, EN 14496, ASTM D4541, ASTM C1583, ASTM D7234, ASTM D7522

Description Automated Pull-Off Tester
Working range 0.81 to 8.1 MPa (118 to 1182 psi)
Tensile force (50 mm test disc)  1.6 to 16 kN (60 to 3597 lbf)
Maximum stroke  5 mm
Maximum pulling speed  4.65 mm/min (0.183 inch/min)
Memory  100 measurements
Connections USB to PC and for charging
Calibration accuracy  EN ISO 7500-1 Class 1 (±1 % from 20 % of maximum force)
Battery capacity  1500 mAh, 3.7V (min. 80 measurements)
Weight 4.5 kg

Adaptor plate for large test discs

35-2310/18

For use with 35-2310 Automated Pull-Off Tester.

Fixing kit for vertical and overhead surfaces

35-2310/20

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium 100x100mm/M10, set of 3

35-2310/16

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium 40x40mm/M10, set of 10

35-2310/14

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium 50x50mm/M10, set of 10

35-2310/13

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium Ø 100mm/M10, set of 3

35-2310/15

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium Ø 20mm/M10, set of 10

35-2310/12

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium Ø 50mm/M10, set of 10

35-2310/11

For use with 35-2310 Automated Pull-Off Tester.

Test disc aluminium Ø 75mm/M10, set of 5

35-2310/17

For use with 35-2310 Automated Pull-Off Tester.

Test disc steel Ø 50mm/M10, set of 10

35-2310/10

For use with 35-2310 Automated Pull-Off Tester.

Test disc steel Ø 50mm/M10, set of 10

35-2310/21

For use with 35-2310 Automated Pull-Off Tester.

Battery pack complete

35-2310/19

For use with 35-2310 Automated Pull-Off Tester.
