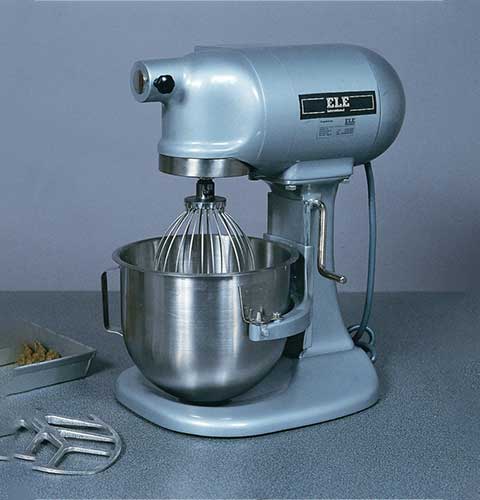

Bench-Mounting Mixer 5 Litre Capacity Complete with Bowl Beater and Whisk. 220-240V 50Hz 1Ph.

« return

Bench-Mounting Mixer 5 Litre Capacity Complete with Bowl Beater and Whisk. 220-240V 50Hz 1Ph.

23-6191/01

Category:

In-situ Sampling and Preparation

Sub Category:

N/A

Product Group:

Sample Mixers

The mixer has two electrically switched mixing speeds which obviates the need to switch off during speed selection. The mixing head comprises a beater which contra-rotates about a central shaft using planetary gearing. A lever-acting lifting device facilitates the insertion and removal of the bowl. This mixer is suitable for the mixing of soil samples, mortar, bituminous mixtures and associated materials where comparatively small samples are being prepared. Supplied with stainless steel bowl, beater and whisk.

Log in

You must log in to your ELE account to view prices and place your order.

**Not available for sale in the USA**

Voltage Supply 220 - 240 V AC, 50 Hz, 1ph
Description Bench-Mounting Mixer
BS 598-107 Yes
BS 1377-1 Yes
BS 1924-1 Yes
EN 12697-35 Yes



Specification

Dimensions 545 x 380 x 550 mm
Beater Speeds (rpm) low, intermediate, high 136, 281, 580
Central shaft speeds (rpm) low, high 60, 124, 255
Rated power 500 W
Weight 24 kg



Isomantle Electric Heater

45-5580/01

For use with 23-6191 Bench Mounting Mixer.

Stainless Steel Bowl 4.73 Litres.

23-6191/10

For use with the 5 Litre Bench Mounted Mixer - 23-6191/01
