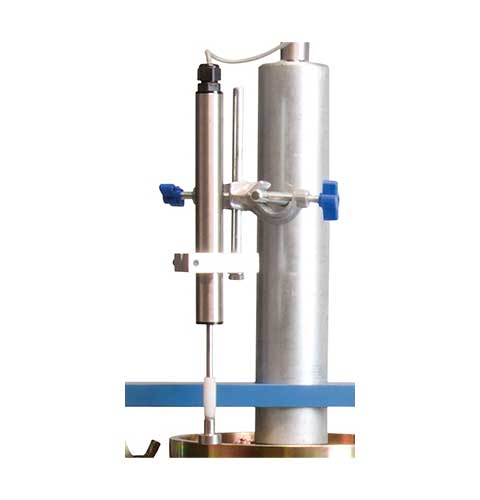

CBR Penetration Transducer 50mm Travel Fitted with 5 Pin Din Plug.

27-1705

Category:

Compaction & CBR Test Equipment, Data Logging, Software and Electronic Instrumentation

Sub Category:

California Bearing Ratio, Instrumentation for CBR testing

Product Group:

Penetration Measurement, Penetration Measurement

• Ideally suited for use with GDU for accurate displacement measurements
• Models available for use in consolidation, shear, CBR and triaxial test applications
• Supplied complete with mounting hardware for specified products

Displacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.

Description CBR Penetration Transducer 50mm Travel
Mounting Bracket Included



Specification

Construction Fully encapsulated electronics,
sealed in a stainless steel case
Excitation 14 V DC
Connector 5-pin DIN type
Mounting bracket Included as standard
Weight kg 0.45
